SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7516 AND id_lang = 1 Coaxial cable SK100plus PVC 18VAtC Eca Class A+ 250m White Braided 55% Televes
Coaxial cable SK100plus PVC 18VAtC Eca Class A+500m White Braided 55% Televes
search
  • Coaxial cable SK100plus PVC 18VAtC Eca Class A+500m White Braided 55% Televes

Coaxial cable SK100plus PVC 18VAtC Eca Class A+ 250m White Braided 55% Televes

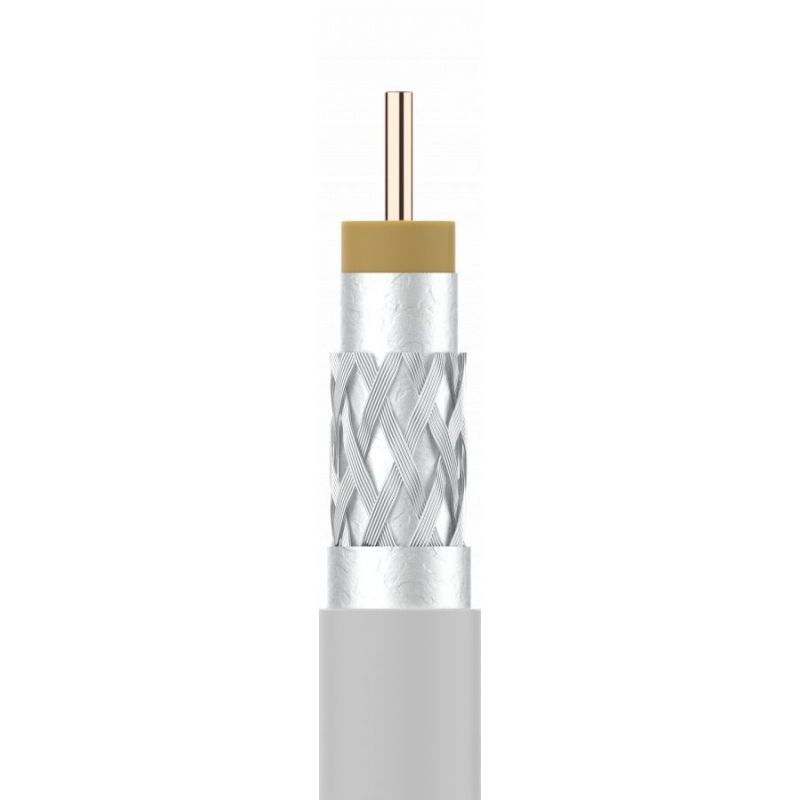

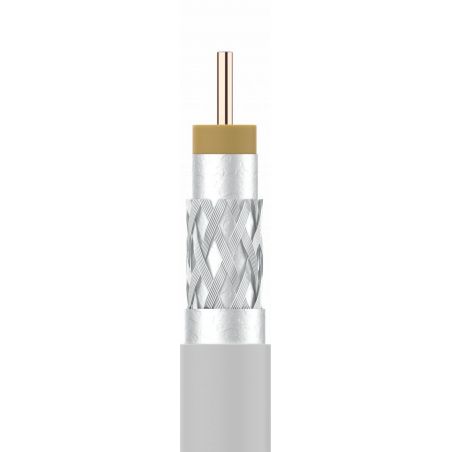

Wooden coil 250m. Coaxial cable with both conductors made of copper (Cu/Cu) and outstanding braid coverage (55%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18 VAtC cable with PVC sheath. Color White. Televes 413708

€251.08
Tax included
Reference televes-413708
Brand Televes
Quantity
Available in 24/48h

Free shipping
Coaxial cable SK100plus PVC 18VAtC Eca Class A+500m White Braided 55% Televes

Coaxial cable SK100plus PVC 18VAtC Eca Class A+ 250m White Braided 55% Televes

€251.08
Coaxial cable with both conductors made of copper (Cu/Cu) and outstanding braid coverage (55%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18 VAtC cable with PVC sheath.

Stands out for

  • Internal conductor made of copper and aluminum mesh
  • Class A + shielding
  • Euroclass Eca

Features

  • Wooden coil 250m.
  • Outer PVC cover in white
  • Characteristic impedance of 75 ohm
  • Available in reels of different footage



Coaxial trishield (TSH) Class A + cable

With 3 layers of shielding (trishield), these cables are those that provide greater immunity to interference, as they have a very high screening. Its use is recommended in routes with high levels of electromagnetic noise.

Their constructive properties make them Class A +, complying with the EN 50117 standard:

  • At 5 - 30 MHz => TI <2.5 mΩ / m
  • At 5 - 1000 MHz => SA> 95 dB
  • At 1000 - 2000 MHz => SA> 85 dB
  • At 2000 - 3000 MHz => SA> 75 dB

Where, the transfer impedance (TI) defines the effectiveness of the shielding at low frequencies, and the shielding attenuation (SA) defines it between 30 and 3000MHz.

Specifications

Type SK100plus
Standard EN 50117-2-4
EuroClase Eca
Class A+
Central conductor Ø mm 1.02
Material Cu
Res. Ohm/Km <22
Dielectric Ø mm 4.6
Material PEE
Inner sheet Aluminium + Polyester
Mesh Material Al
Dimensions (Ncx Nsx Ø) 16 x 6 x 0.10
Res. Ohm/Km <15
% coverage 55
2nd Shield Shield Yes
Petro-Gel No
Outside coverage Ø mm 6.7
Material PVC
Minimum bend radius mm 40
Shield at 1GHz dB >95 (100 typ.)
Capacity pF/m 50.2
Impedance Ohm 75
Transfer Impedance (5-30MHz) mOhm/m ≤2.0
Propagation speed min. % 82
Attenuations (dB / m)
Frequency (MHz)
5 0.02
47 0.05
90 0.06
200 0.09
500 0.14
800 0.18
1000 0.21
1350 0.24
1750 0.28
2050 0.3
2300 0.31
