Coaxial cable SK2015plus LSFH Resistant UV Cca Class A++ 100m White Braided 82% Televes
search
  • Coaxial cable SK2015plus LSFH Resistant UV Cca Class A++ 100m White Braided 82% Televes

Coaxial cable SK2015plus LSFH Resistant UV Cca Class A++ 100m White Braided 82% Televes

100m plastic coil. Coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath. Televes 414901

€1.72
Tax included
Reference televes-414901
Brand Televes
Quantity
Available in 24/48h

Free shipping
Coaxial cable SK2015plus LSFH Resistant UV Cca Class A++ 100m White Braided 82% Televes

Coaxial cable SK2015plus LSFH Resistant UV Cca Class A++ 100m White Braided 82% Televes

€1.72

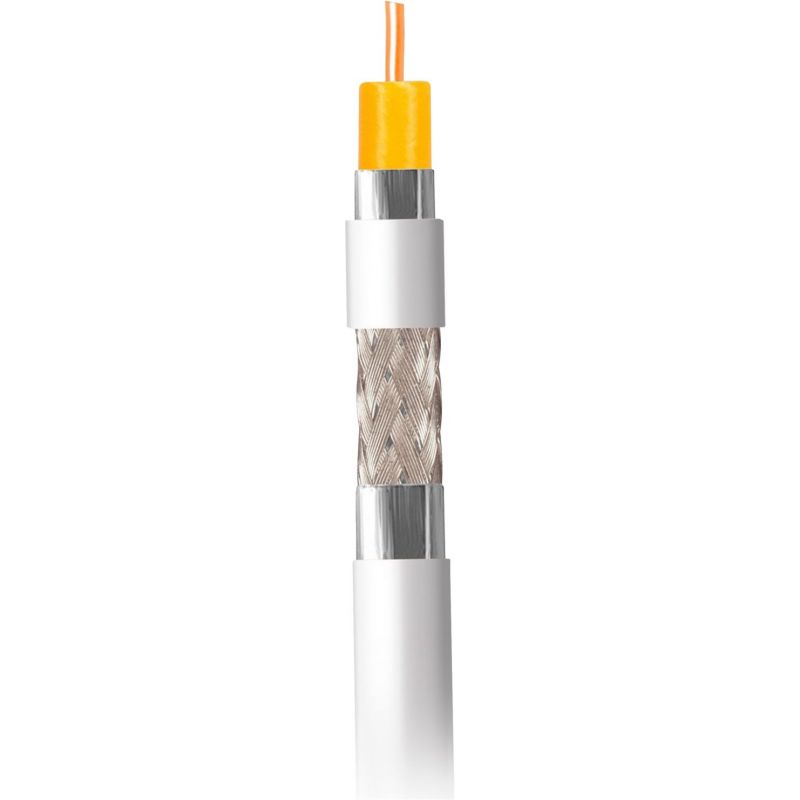

SK2015plus Coaxial cable, 18AtC

Cca Euroclass, A++ Class shielded

Coaxial cable with both conductors made of copper (Cu/Cu) and excellent braid coverage (82%). Triple shielded (TSH) cable, equipped with a second foil for extra shielded. An 18AtC cable with UV-resistant LSFH sheath.

Highlights

  • Copper conductors
  • Class A++ shielded
  • Cca Euroclass

Features

  • External UV-resistant LSFH sheath, white colour
  • 75 Ohm characteristic impedance
  • 100m plastic coil



Class A++ Trishield (TSH) coaxial cable

With three shielding layers (Trishield), this cables provide the highest immunity to interference thanks to its very high shielding. Recommended in cases of high electromagnetic noise levels.

They belong in EN 50117 standard Class A++, according to their structural properties:

  • For 5 MHz - 30 MHz => TI < 0.9 mΩ/m
  • For 30 MHz - 1000 MHz => SA > 105 dB
  • For 1000 MHz - 2000 MHz => SA > 95 dB
  • For 2000 MHz - 3000 MHz => SA > 85 dB

Where the transfer impedance (TI) defines how effective the shielding is at low frequencies, while the shielding attenuation (SA) defines it in the 30 MHz-to-3000 MHz range.

Specifications

Type SK2015plus
Standard EN 50117-2-4
Euroclass Cca
Class A++
Inner conductor Ø mm 1,05
Material Copper
Res. Ohm/Km 22
Dielectric Ø mm 4.6
Material Expanded polyethylene
Inner foil Aluminium + Polyester
Braid Material Tinned copper (98%Cu)
Dimensions (Nc x Ns x Ø) 24 x 7 x 0.10
Res. Ohm/Km <11
% coverage 82
2nd shielding foil Sí
Petro-Jelly No
Outer sheath Ø mm 6.9
Material LSFH, UV Resistant
Bending radius minimum mm 34.5
1GHz shielding dB >105
Capacitance pF/m 54
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m <0.9
Velocity ratio % 82
Attenuation (dB/m)
Frequency (MHz)
200 0.09
500 0.14
800 0.18
1000 0.21
1350 0.24
1750 0.28
2050 0.3
2300 0.31
