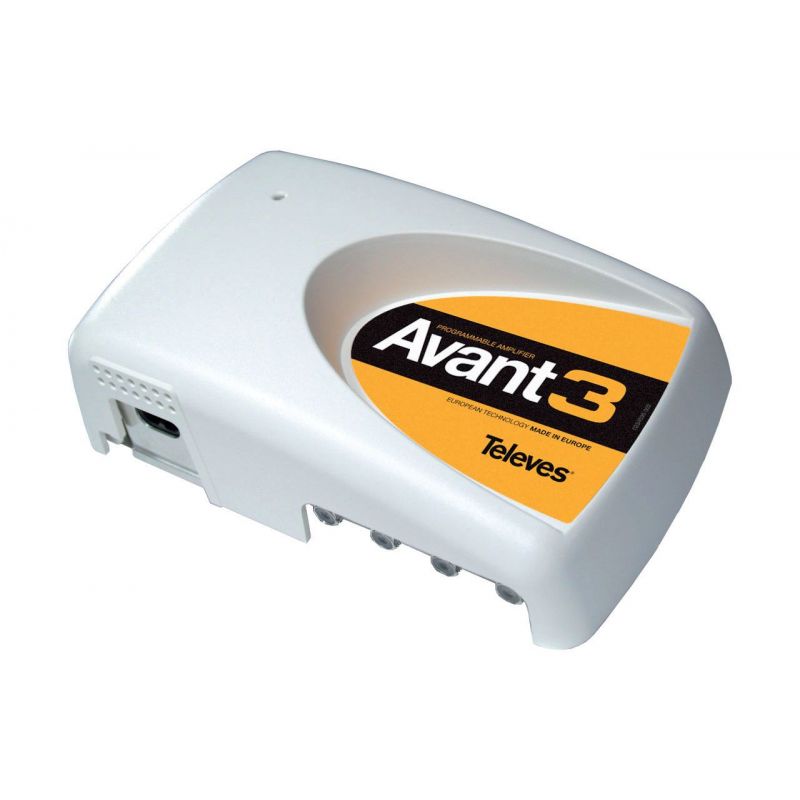

AVANT3 Programmable Amplifier Amplifier MATV BI / FM-VHF-2UHF 5 filters Televes
Programmable headend amplifier intended for a wide range of TV distribution networks, either single family or residential buildings.
€287.48
Tax included
Reference
televes-532740
Brand
Televes
AVANT3 Programmable Amplifier Amplifier MATV BI / FM-VHF-2UHF 5 filters Televes
€287.48
You might also like
Programmable headend amplifier intended for a wide range of TV distribution networks, either single family or residential buildings.
Features
- Automatic level equalization.
- Independent adjustment of each filter.
- Two configurable inputs(5 filters in total). Each filter can be tunned from Ch21 to Ch 69 ( Ch21 to Ch60 for Ref 532740). Bandwidth of each filter can be programmed between 8 and 40 MHz in BIV (Ch21-Ch30) and between 8 and 56 MHz in BV (Ch31-Ch69), ( Ch31-Ch60 ref 532740).
- VHF Broadband input 174 to 406MHz.
- FM Input.
- Each filter features an input signal LED, showing detection of input RF signal.
- 12 Vdc line power to the inputs.
- RF Mix input to combine a second amplifier.
- Configurable by means of controller ref. 7234 or PC Software through serial port.
Specifications
| Reference | 532740 | ||||||
| Inputs | UHF1 | UHF2 | BI/FM | VHF | IN MIX | ||
| Bands | MHz | 470 - 790 | 47-68 / 87-108 | 174 -406 | 47 - 406 / 470-790 | ||
| Gain | dB | 52 | 32/15 | 35 | 3 | ||
| Filters per input | No. | 5-2 | 0-3 | - | - | - | |
| Channels per filter | No. | 1-5 (BIV) / 1-7 (BV) | - | - | - | ||
| Gain adjustment range | dB | - | 0-18 | 0-15 | - | ||
| Filter AGC range | dB | 0-20 | - | - | - | ||
| Output level adjustment range | dB | 0-15 | - | - | - | ||
| Max input level | dBμV | 95 | - | - | - | ||
| Output level | DIN45004B | 116 | 114 | 114 | 114/116 | ||
| IMD3 | 113 | 111 | 111 | 111/113 | |||
| Filter selectivity | dB | 20 (±16MHz) | 20 (±20MHz) | 15 (±40MHz) | - | ||
| Noise figure | dB | 7 | 7 | 7 | - | ||
| Power on inputs | Vdc | 12 | 12 | - | 12 | - | |
| Max current through inputs | mA | 50 | 50 | - | 50 | - | |
| AC Power consumption | W | 9 | |||||
| Protection Index | IP | 20 | |||||
| Dimensions (Wid x Hei x Dep) | mm | 198 x 119 x 65 | |||||
