Shunt 5 ... 1218MHz F 1D 14dB Interior Televes
search
  • Shunt 5 ... 1218MHz F 1D 14dB Interior Televes

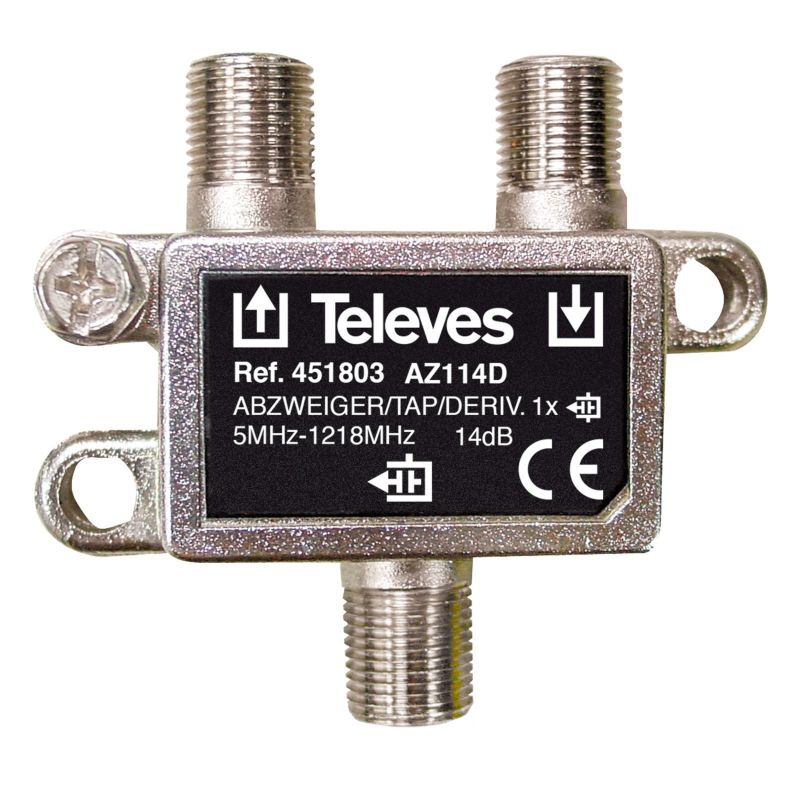

Shunt 5...1218MHz F 1D 14dB Indoor Televes

1 branch shunt and F connectors, for SCATV signals. It is an indoor installation, but it is also suitable for outdoor use, always inside a box (ref. televes-4163). Compatible with DOCSIS 3.1. Televes 451803

€6.69
Tax included
Reference televes-451803
Brand Televes
Quantity
Available Now

Free shipping
Shunt 5 ... 1218MHz F 1D 14dB Interior Televes

Shunt 5...1218MHz F 1D 14dB Indoor Televes

€6.69

You might also like

Derivator F 1D

5...1218MHz 14dB (DOCSIS 3.1)

1 branch shunt and F connectors, for SCATV signals.
It is an indoor installation, but it is also suitable for outdoor use, always inside a box (televes-4163 ref.

Compatible with DOCSIS 3.1.

Features

  • F connectors
  • Improvement of step losses
  • Good screening
  • Includes grounding screw
  • Bidirectional DC step between the entrance and the exit of passage

Specifications

Frequency range MHz 5-1218
Number of outputs 2
Plants 4 & 5
Passage losses dB 1
Bypass losses 14
Rejection between derivation >20
DC step (max.) A 1 (in.↔out.)
