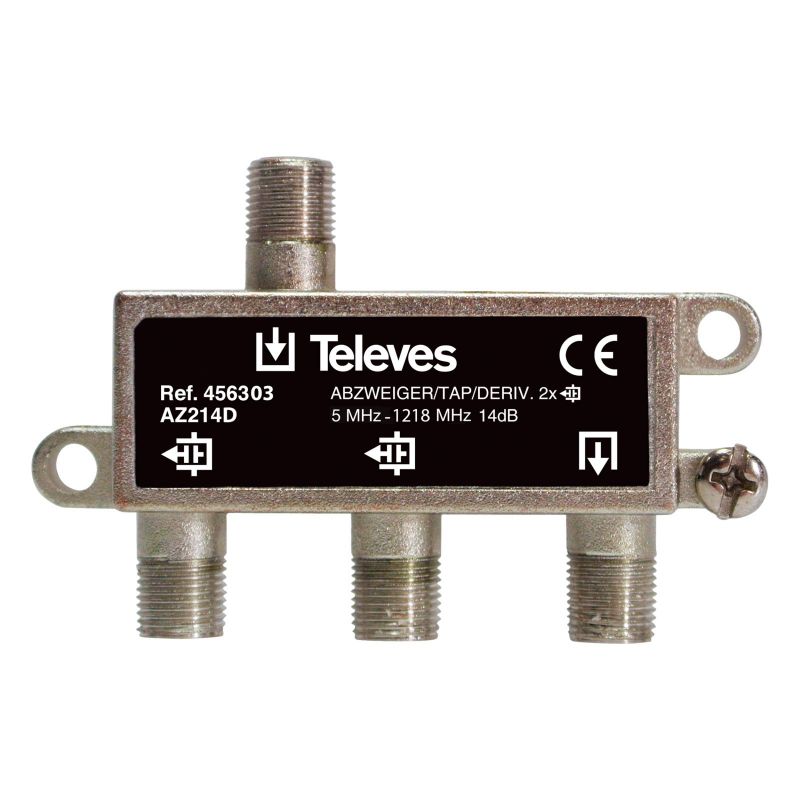

Shunt 5...1218MHz F 2D 14dB Indoor Televes
2 branch shunts and F connectors, for SCATV signals. It is an indoor installation, but it is also suitable for outdoor use, always inside a box (ref. televes-4163). Compatible with DOCSIS 3.1. Televes 456303
€7.26
Tax included
Reference
televes-456303
Brand
Televes
Shunt 5...1218MHz F 2D 14dB Indoor Televes
€7.26
You might also like
Derivator F 2D
5...1218MHz 14dB (DOCSIS 3.1)
2 branch shunt and F connectors, for SCATV signals.
It is an indoor installation, but it is also suitable for outdoor use, always inside a box (ref. televes-4163)
Compatible with DOCSIS 3.1.
Features
- F connectors
- Improvement of step losses
- Good screening
- Includes grounding screw
- Bidirectional DC step between the entrance and the exit of passage
Specifications
| Frequency range | MHz | 5-1218 |
| Number of outputs | 2 | |
| Plants | 6 & 7 | |
| Passage losses | dB | 1.5 |
| Bypass losses | 14 | |
| Rejection between derivation | >20 | |
| DC step (max.) | A | 1 (in.↔out.) |
