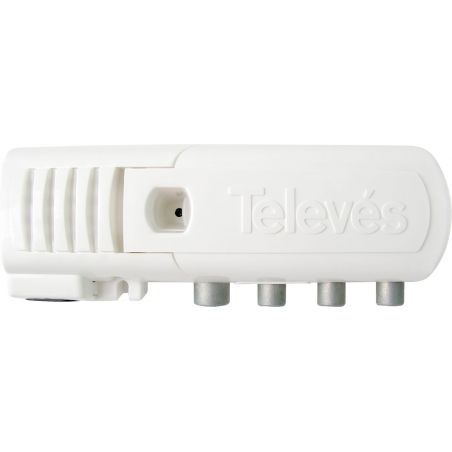

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7576 AND id_lang = 1 IEC (DC) domestic amplifier 1e/(2s +TV) 47...694MHz G 20dB LTE700/5G Televes
IEC (DC) domestic amplifier 1e/(2s +TV) 47...694MHz G 20dB
search
  • IEC (DC) domestic amplifier 1e/(2s +TV) 47...694MHz G 20dB

IEC (DC) domestic amplifier 1e/(2s +TV) 47...694MHz G 20dB LTE700/5G Televes

Domestic amplifier with 3 outputs (2+TV) to extend the terrestrial television domestic network. The TV output provides a lower gain for direct connection to the television set (no outlet installation). Equipped with LTE700/5G filtering and input power supply for pre-amplifier and BOSS system feeding. Televes 545720

€61.55
Tax included
Reference televes-545720
Brand Televes
Quantity
Available in 24/48h

Free shipping
IEC (DC) domestic amplifier 1e/(2s +TV) 47...694MHz G 20dB

IEC (DC) domestic amplifier 1e/(2s +TV) 47...694MHz G 20dB LTE700/5G Televes

€61.55

“IEC” (DC) domestic amplifier

3 outputs (2+TV): VHF/UHF - LTE700 Ready

Domestic amplifier with 3 outputs (2+TV) to extend the terrestrial television domestic network.
The TV output provides a lower gain for direct connection to the television set (no outlet installation).
Equipped with LTE700/5G filtering and input power supply for pre-amplifier and BOSS system feeding.

Highlights

  • Low-impact visual design and limited size
  • Integrated high-performance switched-mode power supply (40% less than a standard amplifier )
  • Fully automated manufacturing subject to the most stringent quality controls

Features

  • Manual gain control, protected by a folding cover
  • ON/OFF DC pass switch, for pre-amplifier or BOSS system powering
  • Can be wall-mounted using screws
  • “IEC” connectors

Specifications

Inputs     3(2+1TV)
(CEI)
Frequency range   MHz 47...694
Gain G dB 20
(12 @ TV)
Gain adjustment range marg 0 ...15
Max. output level DIN 45004B Vout dBμV >110
IMD3 (2tones, -35dB) Vout >117
Noise level N.F. dB 6
Power supply/Max.
current inputs		 ON Vdc/
mA		 12 / 100
OFF 0
Mains voltage/frequency   V~/Hz 196...253/ 50...60
AC power consumption   W/mA <3,6 / <34
Protection index   IP 20
Operating temperature range   ºC -5 ... +45
