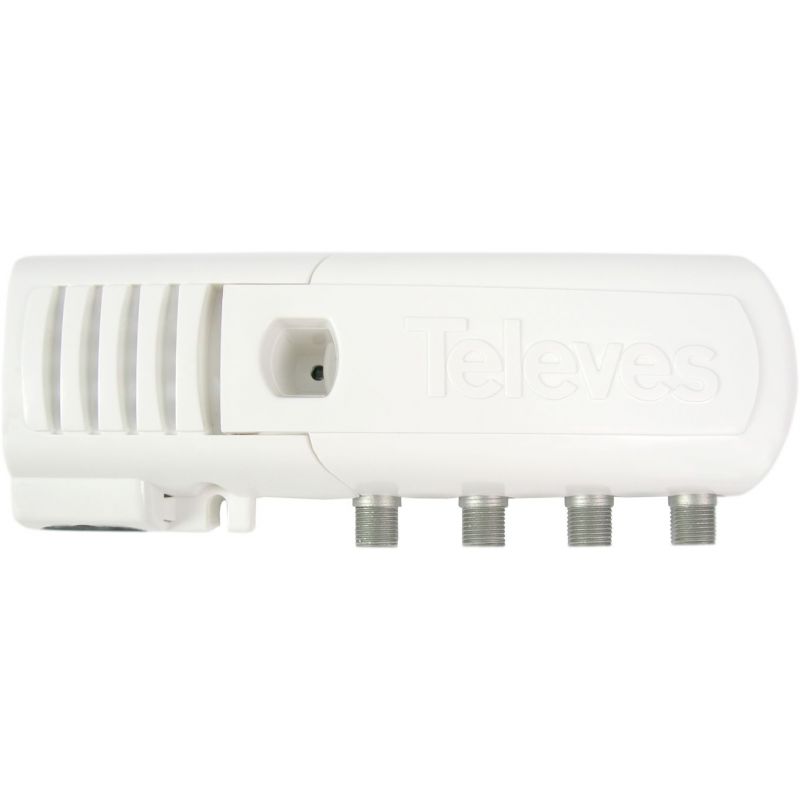

Housing Amplifier Auto-LTE 1e/(2s+TV) F 47...694/782MHz G 20dB Televes
Domestic amplifier with 3 outputs (2+TV) and automatic level adjustment to extend the terrestrial television domestic network.
The TV output provides a lower gain in order to be directly connected to the television set (no outlet installation).
Equipped with selectable LTE and input power supply for pre-amplifier or BOSS system feeding. Televes 545801
The TV output provides a lower gain in order to be directly connected to the television set (no outlet installation).
Equipped with selectable LTE and input power supply for pre-amplifier or BOSS system feeding. Televes 545801
€84.77
Tax included
Reference
televes-545801
Brand
Televes
Housing Amplifier Auto-LTE 1e/(2s+TV) F 47...694/782MHz G 20dB Televes
€84.77
Home amplifier "F"
3 outputs (2 + TV): VHF / UHF - Auto LTE
Amplifier housing 3 outputs (2 + TV) with automatic level adjustment, to expand the domestic terrestrial television network.
The TV output offers a lower gain to be connected directly to the TV (without installing a socket).
It incorporates Auto LTE filtering and input power for preamplifiers or a BOSS system.
Highlights
- Plug & Play, without adjustments: it incorporates automatic regulation of gain, without affecting the quality of the signal
- Discreet and restrained design
- Fully automated manufacturing and subjected to rigorous quality controls
Features
- Screw on the wall
- "F" connectors
Specifications
| Outputs | 3 (2 + 1TV) | |||
| Frequency margin | MHz | 47...68/174...400 | 470...694/790 (AUTO) | |
| Gain | dB | 10 (0 @TV) | 20 (11 @TV) | |
| Gain regulation margin | dB | 0 ... 30 AUTO |
||
| Output level | EN50083 (1) | dBμV | 101 | 109 |
| DIN45004B | 92 | 101 | ||
| 10Ch DVB-T | - | 80 | ||
| 2Ch DVB-T | 84 | - | ||
| Figure of noise | dB | 4.5 | 6 | |
| Voltage / Network frequency | V~/Hz | 193-253 / 50-60 | ||
| Total AC consumption | W/mA | <2.8 / 28 | ||
| DC current pass | Vdc/mA | 12 / 100 | ||
| Operating temperature range | ºC | -5 ... +45 | ||
| Protection index | IP | 20 | ||
(1) IMD3 2CH -35dB
