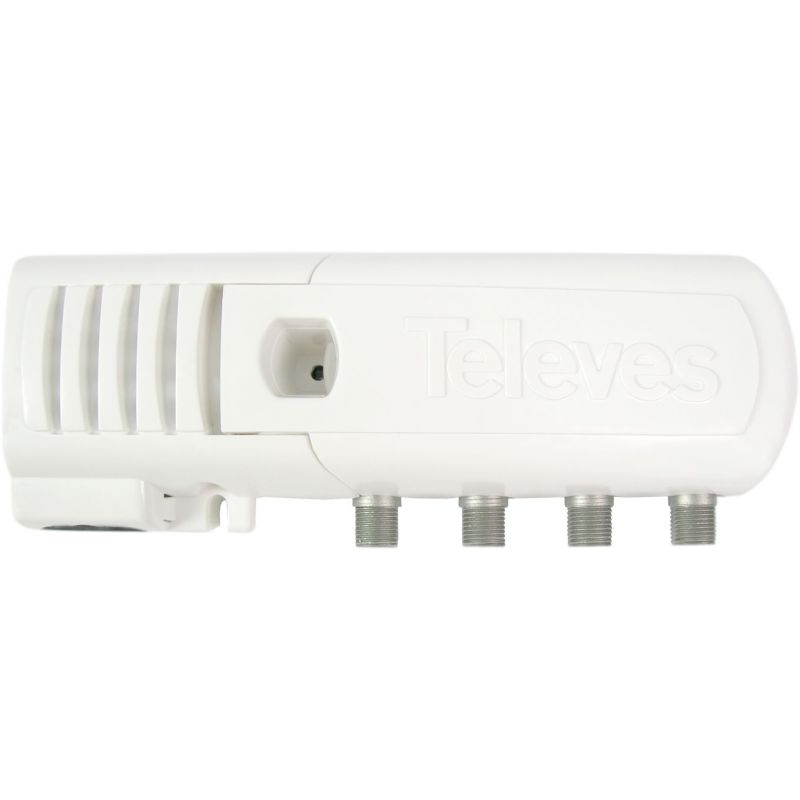

Housing Amplifier Auto-LTE 1e/(2s+TV) F 47...694/782MHz USOS G 20dB Televes
Domestic amplifier with 3 outputs (2+TV) and automatic level adjustment to extend the terrestrial television domestic network. They incorporate "USOS" technology (User Selectable Output Signal). The TV output provides a lower gain in order to be directly connected to the television set (no outlet installation). Equipped with selectable LTE and input power supply. Televes 545901
€87.27
Tax included
Reference
televes-545901
Brand
Televes
Housing Amplifier Auto-LTE 1e/(2s+TV) F 47...694/782MHz USOS G 20dB Televes
€87.27
"F" domestic amplifier
3 outputs (2+TV): VHF/UHF - Auto LTE
Domestic amplifier with 3 outputs (2+TV) and automatic level adjustment to extend the terrestrial television domestic network.
The TV output provides a lower gain in order to be directly connected to the television set (no outlet installation).
Equipped with selectable LTE and input power supply for pre-amplifier or BOSS system feeding.
The TV output provides a lower gain in order to be directly connected to the television set (no outlet installation).
Equipped with selectable LTE and input power supply for pre-amplifier or BOSS system feeding.
Highlights
- Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device automatically adjustsgain according to the input signal variation.
- Low-impact visual design and limited size
- Fully automated manufacturing, subject to the most stringent quality controls
Features
- Can be wall-mounted using screws
- “F” connectors
Specifications
| Outputs | 3 (2 + 1TV) | |||
| Frequency margin | MHz | 47...68/174...400 | 470...694/790 (AUTO) | |
| Gain | dB | 10 (0 @TV) | 20 (11 @TV) | |
| Gain regulation margin | dB | 0 ... 30 AUTO |
||
| Output level | EN50083 (1) | dBμV | 101 | 109 |
| DIN45004B | 92 | 101 | ||
| 10Ch DVB-T | - | 92 | ||
| 2Ch DVB-T | 96 | - | ||
| Output level regulation margin | dB | 0 ... 12 MANUAL |
||
| Figure of noise | 4,5 | 6 | ||
| Voltage / Network frequency | V~/Hz | 193-253 / 50-60 | ||
| Total AC consumption | W/mA | <2,8 / 28 | ||
| DC current pass | Vdc/mA | 12 / 100 | ||
| Operating temperature range | ºC | -5 ... +45 | ||
| Protection index | IP | 20 | ||
(1) IMD3 2CH -35dB
