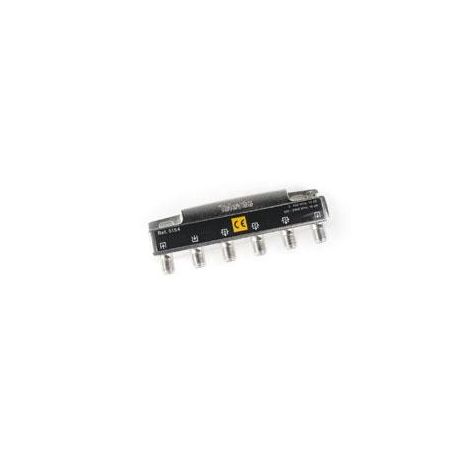

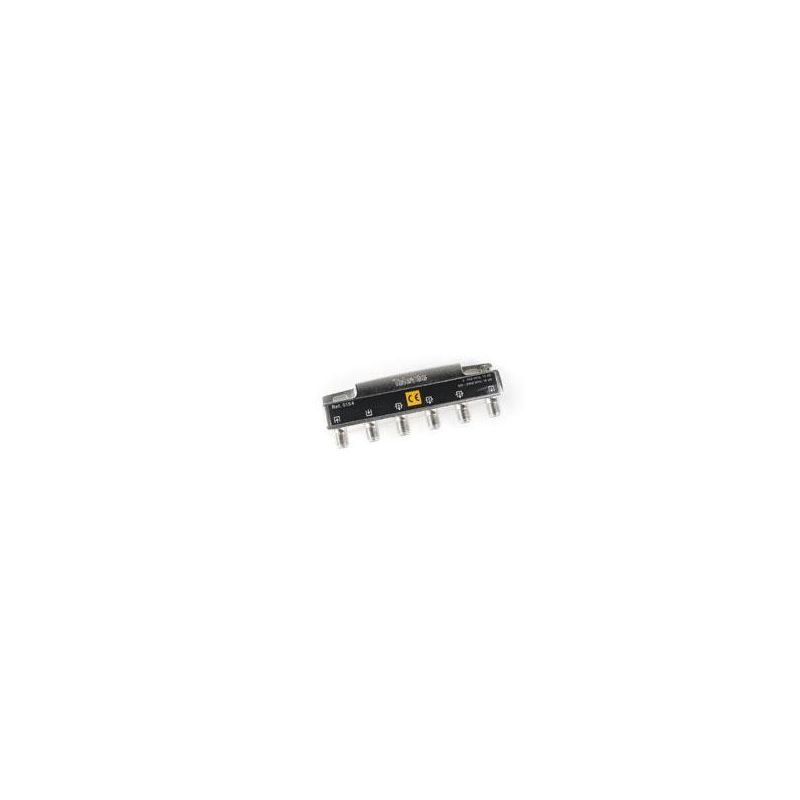

Distribution SMATV Connector F 4 outputs Televes
Band (MHz): 5 - 2400. Number of outputs: 4. Lost Insertion (dB): MATV 7.5 / FI 9.5. Reject between outputs (dB): MATV> 20 / FI> 20. Step DC output-input max .: 1A.
€12.84
Tax included
Reference
televes-5154
Brand
Televes
Distribution SMATV Connector F 4 outputs Televes
€12.84
Indoor delivery to F connectors
Specifications
| Reference | 5154 | |||
| Nº of outputs | nº | 4 | ||
| Frequency range | MATV | IF SAT | ||
| Insertion loss In -> Out | dB | 7.5 | 9.5 | |
| Rejection between outputs | > 20 | |||
| Screening | 30-300 MHz | > 85 | ||
| 300-470 MHz | > 80 | |||
| 470-1000 MHz | > 75 | |||
| 1000-2000 MHz | > 55 | |||
| Max Current through Out - In | A | 1 | ||
| Dimensions(Wid x Hei x Dep) | mm | 116x38x6 | ||
| Weight | gr | 175 | ||
