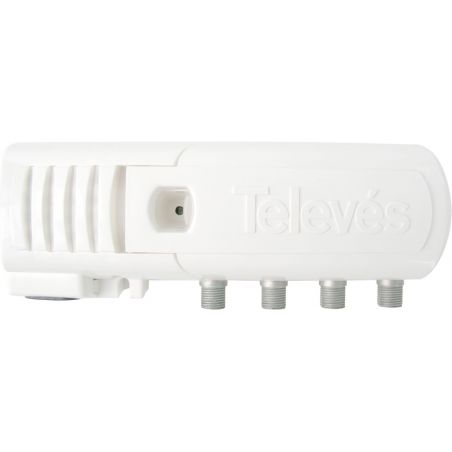

Housing Amplifier DC 1e/2s F 47...790MHz G 20dB Vs 110dBμV Televes
Amplifier housing 2 outputs, to expand the domestic terrestrial television network. It incorporates LTE/4G filtering and input power for preamplifiers or a BOSS system. Televes 553241
€57.34
Tax included
Reference
televes-553241
Brand
Televes
Housing Amplifier DC 1e/2s F 47...790MHz G 20dB Vs 110dBμV Televes
€57.34
Housing amplifier "F" (DC)
2 outputs: VHF/UHF - LTE Ready
Amplifier housing 2 outputs, to expand the domestic terrestrial television network.
It incorporates LTE/4G filtering and input power for preamplifiers or a BOSS system.
Stands out for
- Discreet and restrained design
- High-performance integrated switching power supply: reduced consumption (40% less than a standard amplifier)
- Fully automated manufacturing and subjected to rigorous quality controls
Features
- Manual gain control, protected by a hinged lid
- DC step ON/OFF switch, for powering preamplifiers or BOSS systems
- Screw on the wall
- "F" connectors
Specifications
| Inputs | 2 (F) | ||
| Frequency range | MHz | 47...790 | |
| Gain | G | dB | 20 |
| Regulation margin of profit |
marg | 0...15 | |
| Output level | DIN 45004B Vout | dBμV | 110 |
| IMD3 (2tones, -35dB) Vout | 117 | ||
| Noise figure | N.F. | dB | 6 |
| Power / current max. inputs |
ON | Vdc/ mA |
12/100 |
| OFF | 0 | ||
| Voltage / network frequency | V~/Hz | 196...253 / 50...60 | |
| Total AC consumption | W/mA | 3,6/34 | |
| Protection index | IP | 20 | |
| Operating temperature range | ºC | -5 ... +40 |
