  • Amplifier Mast NanoKom 3e/1s EasyFUHF[dc]-VHFmix-FImix[dc] 12 ... 24V LTE700 Televes

Amplifier Mast NanoKom 3e/1s EasyFUHF[dc]-VHFmix-FImix[dc] 12 ... 24V LTE700 Televes

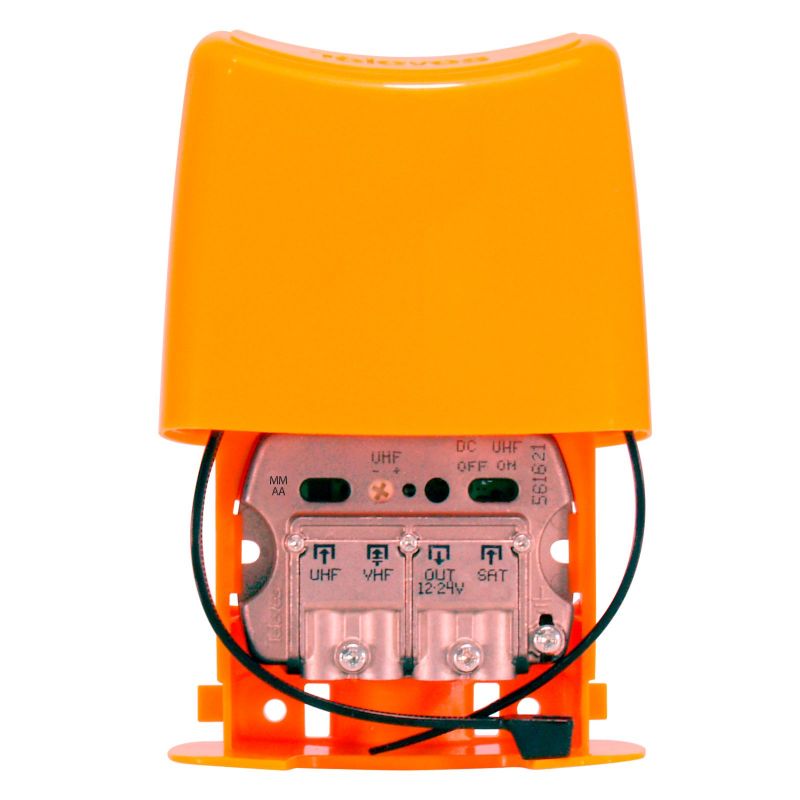

Masthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas. Equipped with 3 inputs: the UHF input signal is amplified, whereas the VHF and SAT signals are only combined. Allows DC pass towards the satellite input to power the LNB. Televes 561621

€33.37
Tax included
Reference televes-561621
Brand Televes
Quantity
Available Now

Free shipping
Amplifier Mast NanoKom 3e/1s EasyFUHF[dc]-VHFmix-FImix[dc] 12 ... 24V LTE700 Televes

Amplifier Mast NanoKom 3e/1s EasyFUHF[dc]-VHFmix-FImix[dc] 12 ... 24V LTE700 Televes

€33.37

Masthead amplifier for the amplification and combination of terrestrial and satellite television signals coming from several antennas.

LTE700.
Equipped with 3 inputs: the UHF input signal is amplified, whereas the VHF and SAT signals are only combined.
Allows DC pass towards the satellite input to power the LNB.

Highlights

  • Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level, which remains stable. The device automatically adjusts gain according to the input signal variation.
  • Separate amplification and very low noise figure, thus respecting signal quality
  • Ultra-small ergonomic design
  • EasyF connection system
  • Can be powered in the 12 V-to-24 V range
  • Fully automated manufacturing, subject to the most stringent quality controls
  • High-screening Zamak chassis

Features

  • LTE/5G filter to remove mobile phone interference. LTE700.
  • ON/OFF switch to allow DC pass towards the UHF input for the powering of a BOSS system
  • Easy mounting. Equipped with a plastic tie for mast mounting
  • Resistant ABS-plastic orange case for outdoor installation

Specifications

Bands UHF VHF SAT
Frequency margin MHz 470-694 47-254 950-2150
Gain dB 29 -1.5 -2.5
Gain adjustment range dB AUTO
0 ... 15		 - -
Max.output level

dBμV/

dBmV

 DIN 45004B 104 - -
EN 50083 111 - -
10 CH DVB-T 91 - -
2 CH DVB-T - - -
Output level regulation margin dB   0...9 - -
Noise figure dB 3 - -
Power supply V /mA 12 ... 24 / 50
Max current through inputs OFF mA 0
ON 40 - -
DC OUT -> DC SAT - - 300
Protection Level IP 23
Temperature operat. limits

ºC

-5 ... +45
