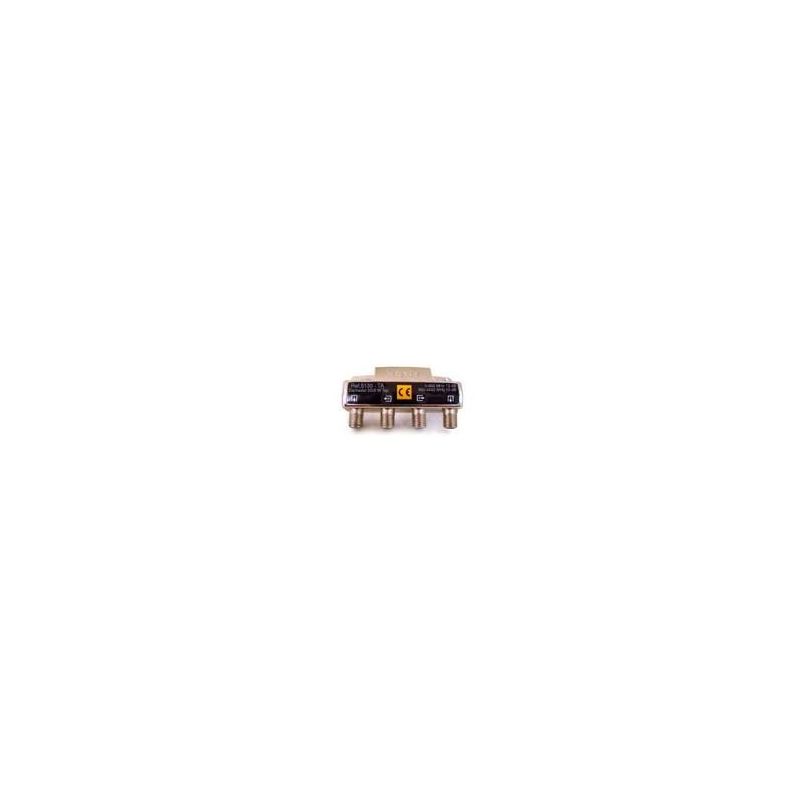

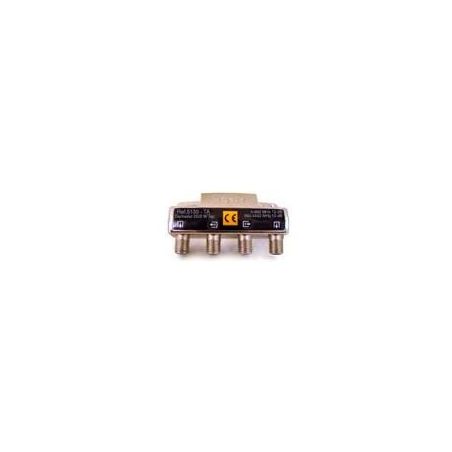

2-way diverter 12 dB (plant 1) type TA F connectors Televes
SMATV indoor shunts 5-2400 MHz with F connectors. They comply with the directives of low voltage 73/23 / CEE and 89/336 / CEE, modified by the directive 93/68 / CEE.
€7.99
Tax included
Reference
televes-5130
Brand
Televes
2-way diverter 12 dB (plant 1) type TA F connectors Televes
€7.99
SMATV indoor shunts 5-2400 MHz with F connectors
Specifications
| Reference | 5130 | ||
| Frequency range | SMATV | ||
| Outputs | nº | 2 | |
| Insertion loss In ->Out | MATV | dB | 2,5 |
| IF SAT | 2,6 | ||
| Tap loss In ->Tap | MATV | 12 | |
| IF SAT | 12 | ||
| Rejection Tap -> Tap | MATV/FI | > 30 | |
| Max current through Out-In | A | 1 | |
| Dimensions(Wid x Hei x Dep) | mm | 76 × 40 × 25 | |
| Weight | gr | 120 | |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
SMATV indoor shunts 5-2400 MHz with F connectors. They comply with the directives of low voltage 73/23 / CEE and 89/336 / CEE, modified by the directive 93/68 / CEE.
