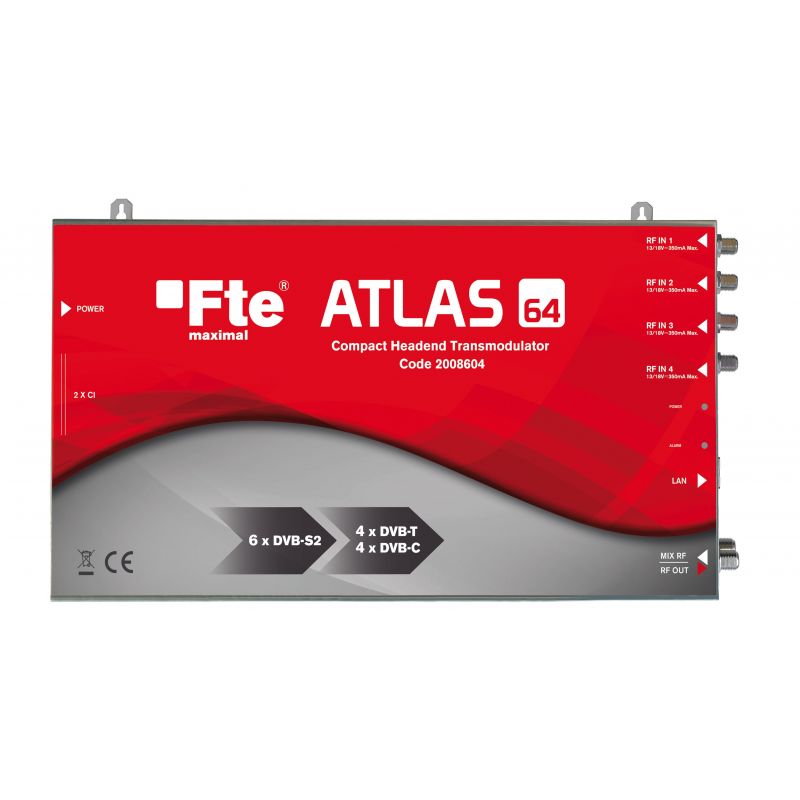

Fte ATLAS 64 Compact Transmodulator Headboard
search
  • Fte ATLAS 64 Compact Transmodulator Headboard

Fte ATLAS 64 Compact Transmodulator Headboard

The compact head of transmodulators ATLAS 64, allows to receive up to 6 transponder of satellite signals (DVB-S/S2), through its tuners. Each tuner can receive the signal from any of the 4 available RF inputs. Compact size. Excellent performance Cash cost Flex Routing Excellent MER Event information about RF. 2x FLexCAM. PID filter.

€2,894.32
Tax included
Reference fte-2008604
Brand Fte
Quantity
In Stock

Free shipping
Fte ATLAS 64 Compact Transmodulator Headboard

Fte ATLAS 64 Compact Transmodulator Headboard

€2,894.32

The compact head of transmodulators ATLAS 64, allows to receive up to 6 transponder of satellite signals (DVB-S / S2), through its tuners. Each tuner can receive the signal from any of the 4 available RF inputs. Atlas 64 is able to decode pay-per-view services when a professional CAM is inserted into any of the 2 C.I slots. Each output mux can combine free or decoded services, coming from several tuners. The services of the 4 mux can be modulated according to the DVB-T or DVB-C standard in their RF output.

The equipment has the following additional functions:

  • It allows you to add new channels to your coaxial network.
  • Several Atlas 64 transmodulators can be combined to make a complete header.
  • It has the option to increase the voltage of the inputs by 1 volt to compensate, for example, resistive losses in long cables.
  • System of priorities to manage problems of overflow of the services output in the mux.
  • Supports LNC and PID filtering.
  • The equipment is easily programmed through its Web interface.

Features

  • Compact size
  • Excellent performance
  • Effective cost
  • Flex Routing
  • Excellent MER
  • Event information about RF
  • 2x FlexCAM

Specifications

Code  2008604
Description

ompact transmodulatory head 6 x DVB-S/S2 to 4 DVB-T/DVB-C
INPUT: QPSK/8PSK (DVB-S/-S2)
Number of RF input connectors 4
Number of tuners  6 (transponders)
Frequency range  950-2150 MHz
Input levels  (-65 to -25 dBm) / -44 to 84 dBμV
Bandwidth  36 MHz
LNB (Power/Switching) 0V/ 13V/ 18V/ 0-22KHz
Maximum current per RF input  350 mA
DiseqC 1.0 Support  Yes
Integrated multiswitch Yes, allow flexible routing of satellite services to the output multiplex (QAM or COFDM)
Configuration  Embedded web server accessible through the administration port
Encrypted services Services can be routed through 1 or 2 CAMs and can be decrypted using multi-service CAMs
RF OUTPUT
Number of output connectors 1 with 4 MUXs (DVB-T or DVB-C)
DVB-T frequency range 47-862 MHz
DVB-T output Up to 31.7 Mbps / MUX
DVB-C frequency range 47-1002 MHz
DVB-C output  Up to 51.6 Mbps / MUX
Output level  84 dBμV
Regulation  0-15 dB
MER ≥ 43 dB
MIX RF 1
Insertion loss MIX RF - RF OUT ≤ 2 dB
GENERAL
Power consumption 110-240Vac-50-60Hz 45W
Dimensions 345 mm x 70 mm x 210 mm
Operating temperature 0-50 ºC

Package content

  • Quick installation guide
  • Atlas 64 compact transmodulators
  • Power cord
  • 1 load type F isolated from 75 Ω
