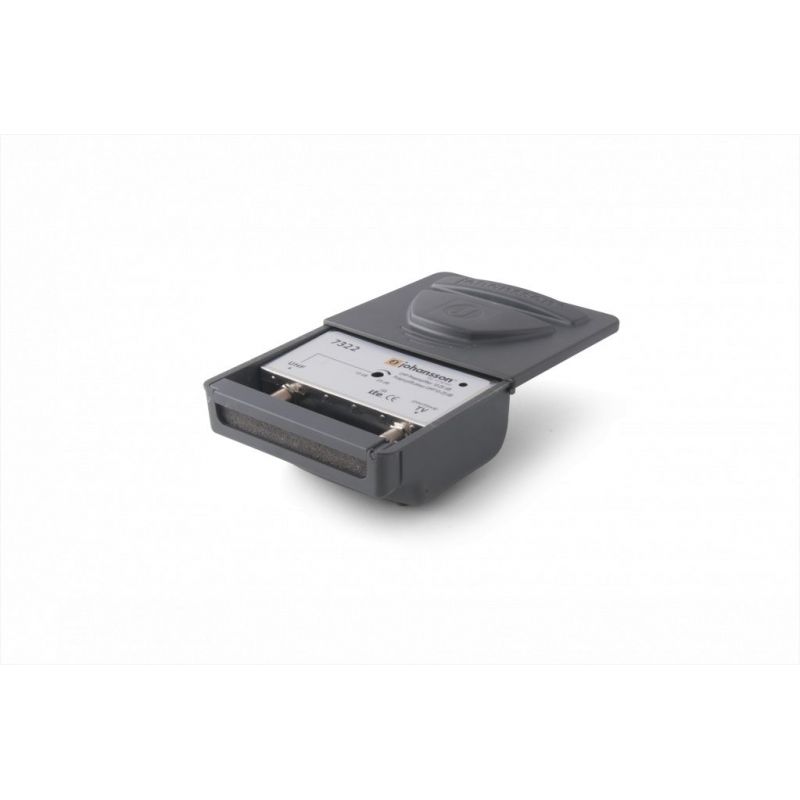

Johansson 7322 Mast Amplifier 1 input / 1 UHF output, 25dB
Low noise LTE preamplifier 25 dB adjustable gain. UHF Ch21-60. LTE (4G): 10-25dB 24V. High selectivity UHF filter with built-in GSM trap. Compact housing. Power led indicator. Wall / mast mounting with strap.
€20.67
€30.86
Save 33%
Tax included
Reference
johansson-7322
Brand
Johansson
This model is replaced by the Johansson 7322L2 Supports LTE 5G
Low noise LTE preamplifier 25 dB adjustable gain. Ch21-60. LTE(4G) : 10-25dB 24V. High selectivity UHF filter with built-in GSM trap. Compact housing. Power led indicator. Wall / mast mounting with strap.
Features
- 1 input / 1 output
- LTE (4G) rejection
- ultra low-noise
- adjustable gain
- high selectivity
- Built-in GSM trap
- Power LED indicator
- Mast or wall mounting
Specifications
| 7322 | ||
|---|---|---|
| Frequency range | MHz | 470 - 790 (ch. 21-60) |
| Gain | dB | 10-25 adj. |
| Noise figure | dB | 2.0 |
| Output level | dBµV | 105 |
| Power supply | VDC | 24 |
| Consumption | mA | 50 |
| Dimensions | mm | 105 x 105 x 37 |
