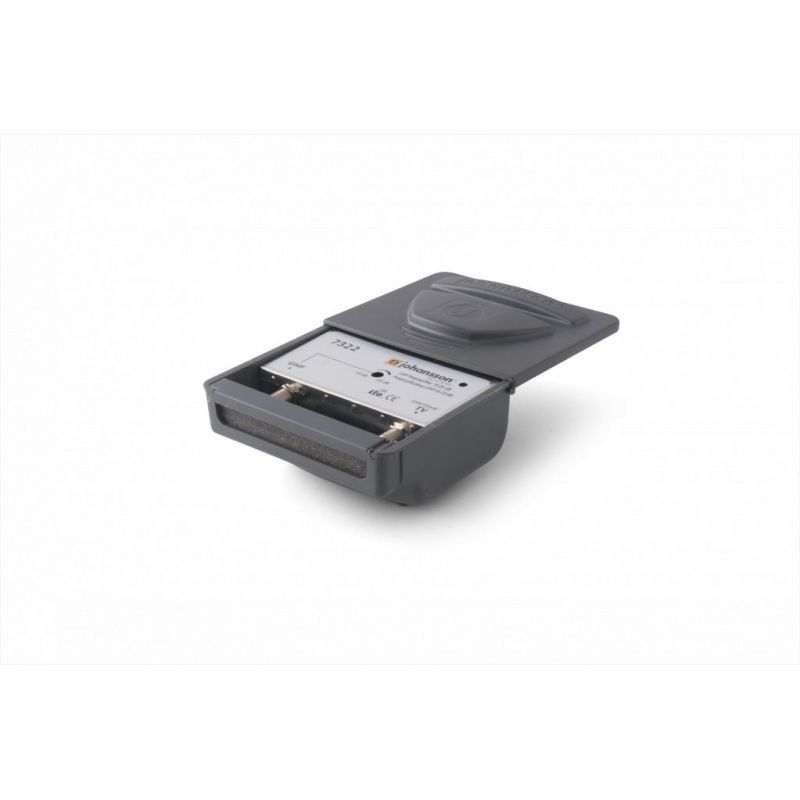

Johansson 7322L2 Mast Amplifier 1 input / 1 UHF output, 25dB
search
  • Johansson 7322L2 Mast Amplifier 1 input / 1 UHF output, 25dB

Johansson 7322L2 Mast Amplifier 1 input / 1 UHF output, 25dB

UHF 25dB LTE2 Mast Amplifier (5G). 1 input / 1 output. Frequency range: 470 ..694MHz (C21 ..C48). LTE (5G) rejection. Ultra low noise. Gain: 10-25 dB (adjustable). High selectivity. Built-in GSM trap. Power indicator LED. Mast or wall mount.

€15.93 €23.78 Save 33%
Tax included
Reference johansson-7322L2
Brand Johansson
Quantity
Available Now

Free shipping
Johansson 7322L2 Mast Amplifier 1 input / 1 UHF output, 25dB

Johansson 7322L2 Mast Amplifier 1 input / 1 UHF output, 25dB

€15.93 €23.78 Save 33%

This model replaces the Johansson 7322

Mast Amplifier UHF 25dB LTE2 (5G)

Characteristics

  • 1 input / 1 output
  • Frequency range: 470 ..694MHz (C21 ..C48)
  • LTE rejection (5G)
  • Ultra low noise
  • Gain: 10-25 dB (adjustable)
  • High selectivity
  • Built-in GSM trap
  • Power indicator LED
  • Pole or wall mount

Specifications

7322L2
Frequency range MHz 470 - 694 (ch. 21-48)
Gain dB 10-25 adj
Noise figure dB 2.0
Max. input level dBµV 80
Max. output level dBµV 100
Power supply VDC 24
Consumption mA 35
Dimensions mm 120 x 115 x 50
