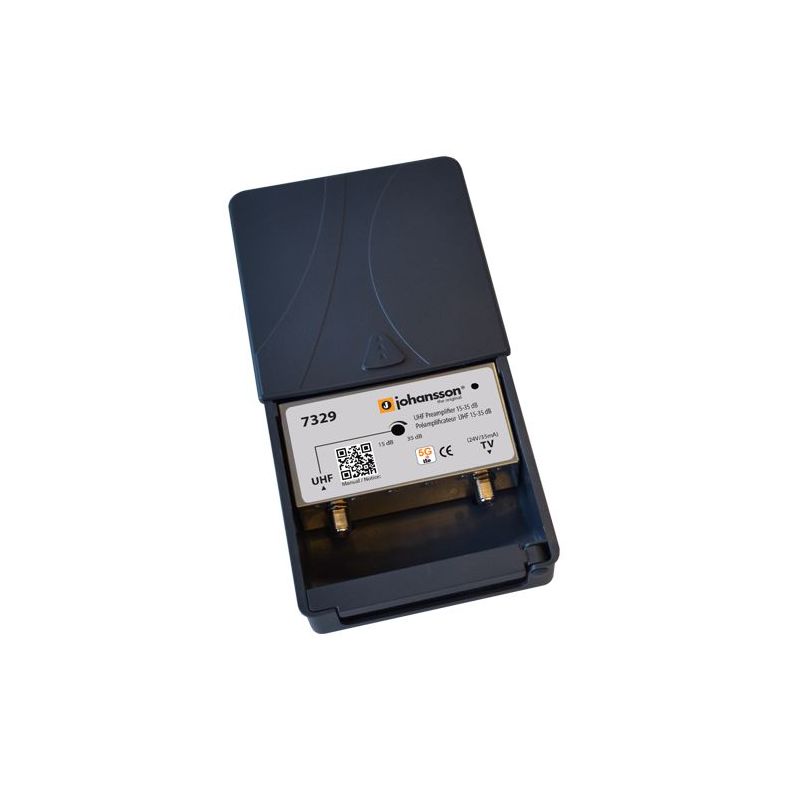

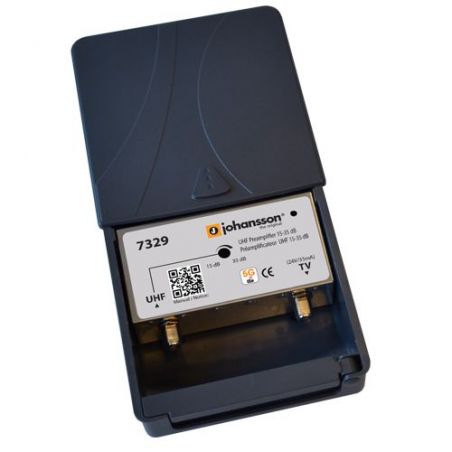

Johansson 7329L2 Mast Amplifier 1 input / 1 UHF output, 35dB
UHF Preamplifier (LTE/5G): 35dB 24V. 1 input/1 output. LTE (5G) rejection. Low-noise. 15-35 dB adjustable gain. Power indication LED. 24 VDC operating voltage.
€16.60
€24.78
Save 33%
Tax included
Reference
johansson-7329L2
Brand
Johansson
Johansson 7329L2 Mast Amplifier 1 input / 1 UHF output, 35dB
€16.60
€24.78
Save 33%
UHF Preamplifier (LTE/5G): 35dB 24V
Features
- 1 input/1 output
- LTE (5G) rejection
- low-noise
- 15-35 dB adjustable gain
- power indication LED
- 24 VDC operating voltage
Specifications
| 7329 | ||
|---|---|---|
| Frequency range | MHz | 470-694 (Ch. 21-48) |
| Gain | dB | 15 - 35 |
| Noise figure | dB | 3.5 |
| Input level | dBµV | 82 |
| Output level | dBµV | 104 |
| Power supply | VDC | 24 |
| Consumption | mA | 35 |
| Dimensions | mm | 120 x 115 x 50 |
