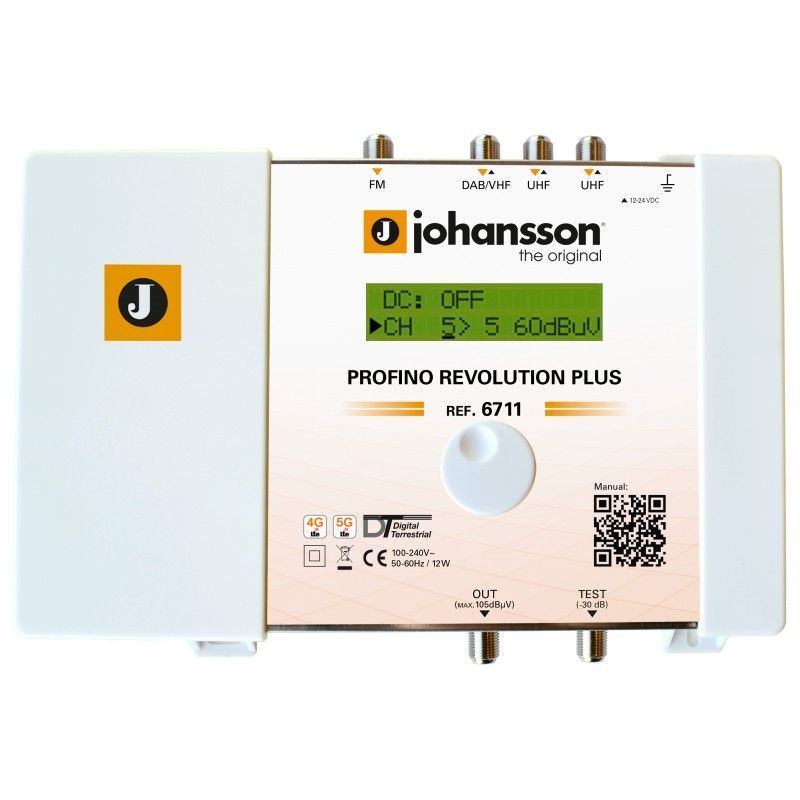

Johansson 6711 Programmable Header Profino Revolution Plus
search
  • Johansson 6711 Programmable Header Profino Revolution Plus

Johansson 6711 Programmable Header Profino Revolution Plus

Profino Revolution Plus Programmable Header (6711). 4 inputs: FM, BIII / DAB, 2xUHF. Gain: 35dB (FM), 35dB (VHF), 70dB (UHF). Output level: 105 (with 15 MUX). You can configure up to 15 filters from 1 to 6 adjacent channels. Fine filtering adjustment per channel. Meets RED standard (European quality standard)

€218.89 €326.70 Save 33%
Tax included
Reference johansson-6711
Brand Johansson
Quantity
Available Now

Free shipping
Johansson 6711 Programmable Header Profino Revolution Plus

Johansson 6711 Programmable Header Profino Revolution Plus

€218.89 €326.70 Save 33%

The Johansson Profino Revolution Plus is an easy to use programmable control panel and terrestrial signal converter. The module optimizes VHF / UHF and FM terrestrial signals from various inputs to provide you with high-quality images on your TV. The latest in programmable control panels without equivalent in the market thanks to its revolutionary technology.

  • 4 inputs: FM, BIII / DAB, 2xUHF
  • Gain: 35dB (FM), 35dB (VHF), 70dB (UHF)
  • Output level: 105 (with 15 MUX)
  • You can configure up to 15 filters from 1 to 6 adjacent channels
  • Fine filtering adjustment per channel
  • Meets RED standard (European quality standard)

Characteristics

  • Input signal level reading: no field meter required.
  • Can process 30 channels
  • Can convert a wide selection of channels
  • The most selective filters on the market (50 dB to adjacent channels)
  • CAG in real time on all individual multiples.
  • Total flexibility in assigning filters from any input. Each channel can be changed from frequency to any other in the VHF or UHF band (Flexible Matrix)
  • To prevent unauthorized persons from changing the settings, all programmable control panels can be locked by means of a security code.
  • Made in Europe, for applications around the world.
  • 4 inputs: FM / DAB / VHF / 2x UHF / 30 channels (15 filters) / AGC / 12-24 V remote power supply
  • Product Dimensions (Height x Width x Depth): 165mm x 217mm x 59mm

Applications

The Profino Revolution Plus can be used to provide high-quality television images and FM signals in a wide variety of projects, both in the residential and hospitality markets. Typical buildings or infrastructures where the Profino Revolution Plus can be used include, but are not limited to:

  • Large and small hotels, hostels, bed and breakfasts, holiday parks.
  • Hospitals, nursing homes, prisons, pensions.
  • Large and small residential buildings.

Package content

  • 1 x Profino Revolution Plus (ref. 6711)
  • 1 x Power Cable (180cm)

Specifications

Tickets - 1 FM + 1 DAB / VHF + 2 UHF
Departures - 1 main test port (FM-DAB-VHF-UHF) + 1 (-30dB)
Frequency range MHz
MHz
MHz		 FM: 88 - 108
VHF: 174 - 240
UHF: 470 - 862
LTE protection megahertz Automatic selection: 694, 790 or OFF
Entry level dBµV
dBµV
dBµV		 FM: 37 - 77
VHF: 45 * - 109
UHF: 45 * - 109
FM output power dBµV 113 (60dB / IM3)
VHF / UHF power output

dBµV

dBµV

dBµV

 115 (60dB / IM3) 126 (35dB / IM3)
108 (with 1 MUX)
105 (with 15 MUX)

Number of channels

Add channels

-

-

30 (15 filters)

1, 2, 3, 4, 5 or 6 MUXes per filter
Gain dB
dB
dB		 FM: 35
VHF:> 60
UHF:> 60
Gain adjustment dB
dB		 FM: 20
VHF / UHF: AGC channel
General attenuator dB twenty
Slope adjustment dB fifteen
Selectivity dB / 1MHz fifty
Return loss dB 10
Output MER dB
dB		 VHF: 35
UHF: 35
Conversion - Yes (from any VHF-UHF channel to any other within the same band)
ESD protection - All entries
DC @ VHF / UHF input
DC Current @ VHF / UHF Input		 V
mA		 12 or 24
100 (total for the 3 entries)
SD port - Do not
Operating temperature ºC -5 to +50
Power supply
Energy consumption		 V
W		 100 - 240
12
Dimensions mm 217 x 165 x 59
Weight kg 0.8

* For 64QAM with 3/4 code rate
