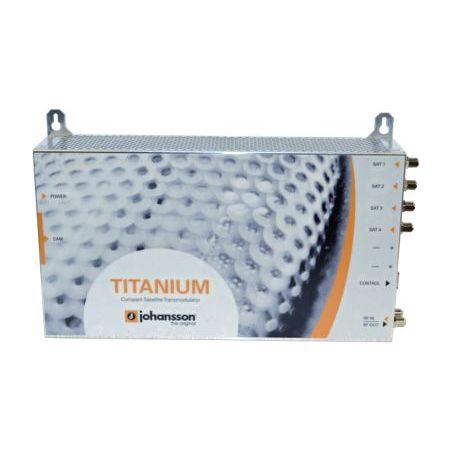

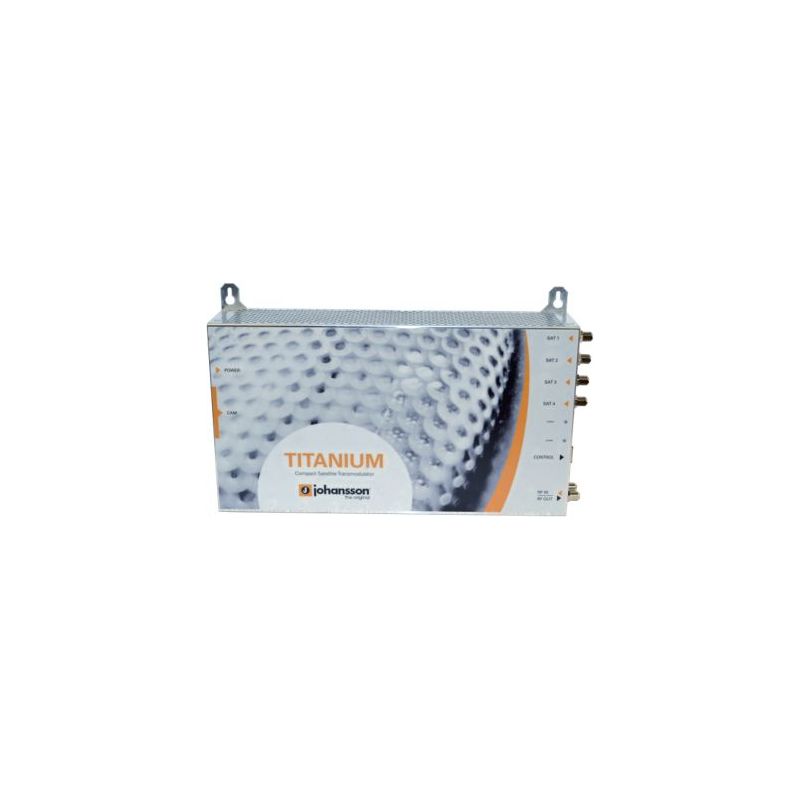

Johansson 8703 Compact headers TITANIUM 8 DVBS to 8 DVBT CI

Compact headend with 8 tuners and 8 MUX output (DVB-T/C) / 4CI slots. Suitable for small to medium-sized projects. The transmodulator with 8 tuners allows a very fast installation. Independent frame with built-in power supply. RF input and RF output.

€2,857.72 €4,265.25 Save 33%
Tax included
Reference johansson-8703
Brand Johansson
Quantity
Available in 24/48h

Free shipping
Johansson 8700 Compact headers TITANIUM 4 DVB-T CI

Johansson 8703 Compact headers TITANIUM 8 DVBS to 8 DVBT CI

€2,857.72 €4,265.25 Save 33%

Compact headend with 8 tuners and 8 output MUXs (DVB-T/C) / 4CI slots

Titanium is our newest compact headend solution that is suitable for small to medium-sized budget-friendly projects.
The transmodulator with 8 tuners allows for very fast installation.

Features

  • Standalone frame with built-in power supply
  • 8 tuners
  • 4 CI slots for CAM cards
  • 8 output MUXs (DVB-T/C)
  • RF In & RF Out

This is what the customers value most about the TITANIUM

  • Selectable reference tuner for each CAM
  • User friendly web interface, see attached user manual.
  • SID remapping
  • Local Channel Numbering (LCN)
  • Full matrix flexibility between input, DVB-S(2) tuners, CAM modules, DVB-T/C multiplexes
  • EPG support (EPG is only processed for forwarded services)
  • PID filtering of e.g. Audio channels
  • Possibility to block all private data PIDs to save bandwidth
  • Possibility to prioritize important TV channels
  • Watchdog feature to guarantee uptime
  • Easily upgradable firmware

Specifications

Input: QPSK/8PSK (DVB-S/-S2)
Inputs - 4 satellite bands
1 x RF in
Tuners - 8 tuners (8 transponders)
Frequency range MHz 950-2150
Level dBµV 44 - 84
Bandwidth MHz 36
Modulation - DVB-S2: QPSK, 8PSK / DVB-S: QPSK
DC remote power at RF input - 13 V/18 V/22 kHz
Integrated multiswitch - Yes, allows flexible routing of satellite proframs to multiplexes
(QAM or QOFDM)
Configuration - Built-in webserver accessible via management port
Encoded programs - From all 8 tuners.
Can be routed through 1, 2, 3 or 4 CAMs and can be decoded
using multi-service CAMs
Max current per input to feed LNB mA 350 per input
Output: RF
Outputs - 1 with 8 MUXs (DVB-T or DVB-C)
DVB-T output Mbps Up to 31.7 / MUX
DVB-C output Mbps Up to 51.3 / MUX
Output level dBµV 69 - 84 (adjustable)
Output MER dB ≥ 43
General
Power consumption W 22 (excl. external LNBs)
Dimensions cm 34.5 x 7 x 18.2
Operating temperature °C 0 to +50

Downloads / Documents

user manual
