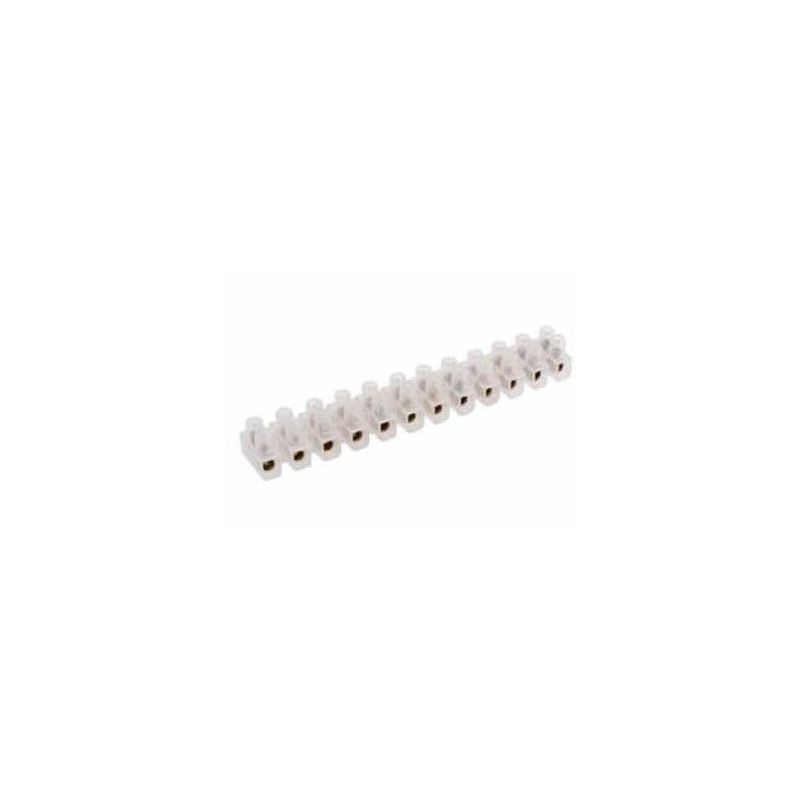

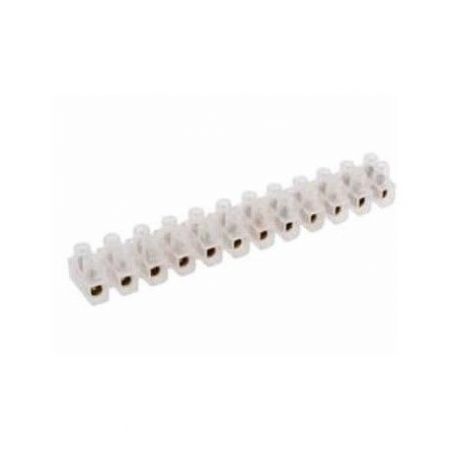

Easy cutting strip 16 mm2 Tekox
Easy cutting strip 16 mm2, to make electrical connections with copper conductors inside electrical lighting boxes. Intensity: 76 A
Tightening torque: 1.2 Nm. Raw materials, Insulating body: Polyamide 6, natural color. V2 (according to UL94). Borna: Nickel-plated brass. Screws: Zinc plated steel, metric thread.
€4.22
Tax included
Reference
tekox-116
Brand
Tekox
Easy cutting strip 16 mm2 Tekox
€4.22
To make electrical connections with copper conductors inside electrical lighting boxes.
Features
- Connection capacity: 16 mm2
- Voltage: 450 V
- Temperature: 110ºC
- Intensity: 76 A
- Tightening torque: 1.2 Nm
- Metric: M 4
Specifications
- 12 poles in standard execution
- With easy break and without burrs (to cut the strip in the desired number of poles).
- Flared ends to facilitate the insertion of drivers.
- Captive screws.
- High mounting of screws to facilitate the connection of the conductor.
- Insulating body: Polyamide 6, natural or black color. V2 (according to UL94).
- Borna: Nickel-plated brass.
- Screws: Zinc plated steel, metric thread.
- Incandescent wire at 960ºC according to EN 60695-2-11.
- Natural color
