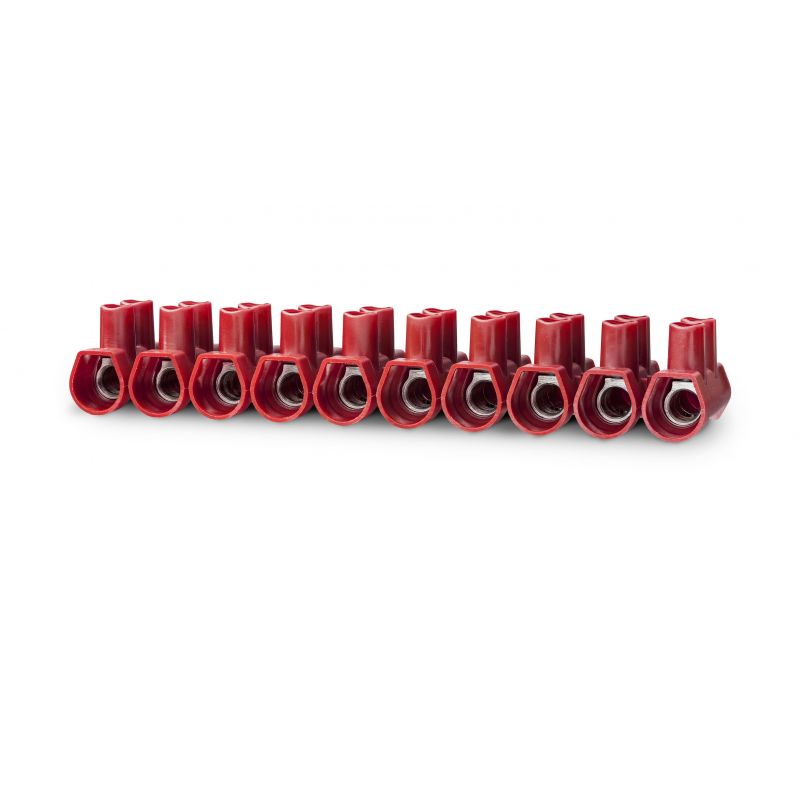

10-pole connection strip with removable protective cover 10mm2
search
  • 10-pole connection strip with removable protective cover 10mm2

10-pole connection strip with removable protective cover 10mm2

Thinking of providing greater security to the facilities. Equipped with a wide mouthpiece and a removable back cover, which minimize the risk of an electrical failure due to false contact. Connection capacity: 10 mm2. Voltage: 450 V. Temperature: 110ºC. Intensity: 57 A. Tightening torque: 0.8 Nm. Metric: M 3.5. 10 poles in standard execution.

€2.11
Tax included
Reference tekox-PRO10
Brand Tekox
Quantity
Available Now

Free shipping
10-pole connection strip with removable protective cover 10mm2

10-pole connection strip with removable protective cover 10mm2

€2.11

Thinking of providing greater security to the facilities, we have equipped this new product with a wide mouthpiece and a removable back cover, which minimizes the risk of an electrical failure due to false contacts.
The connector can be used by one of its mouthpieces or by both, removing the lid.

Easy cut, wide embouchure, back cover.

Features

  • Connection capacity: 10 mm2
  • Voltage: 450 V
  • Temperature: 110ºC
  • Intensity: 57 A
  • Tightening torque: 0.8 Nm
  • Metric: M 3.5
  • 10 poles in standard execution
  • With easy break and without burrs (to cut the strip in the desired number of poles).
  • Large mouthpiece large enough to fit all the necessary cables without leaving the copper in the air.
  • Rear lid easily removable if necessary.
  • Screws raised and threaded, safety pins. Screw foot designed not to damage the driver when tightening.
  • Nickel-plated terminals to guarantee the durability of the connection. Brass terminal with 60% copper for a quality connection.

Specifications

  • Insulating body: Polyamide 6, red V2 (according to UL94).
  • Borna: Nickel-plated brass.
  • Screws: galvanized steel, metric thread.
  • Incandescent wire at 960ºC according to EN 60695-2-11.
  • Technical specifications according to EN 60998.
