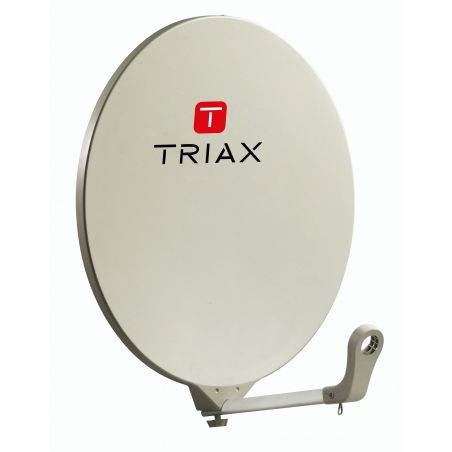

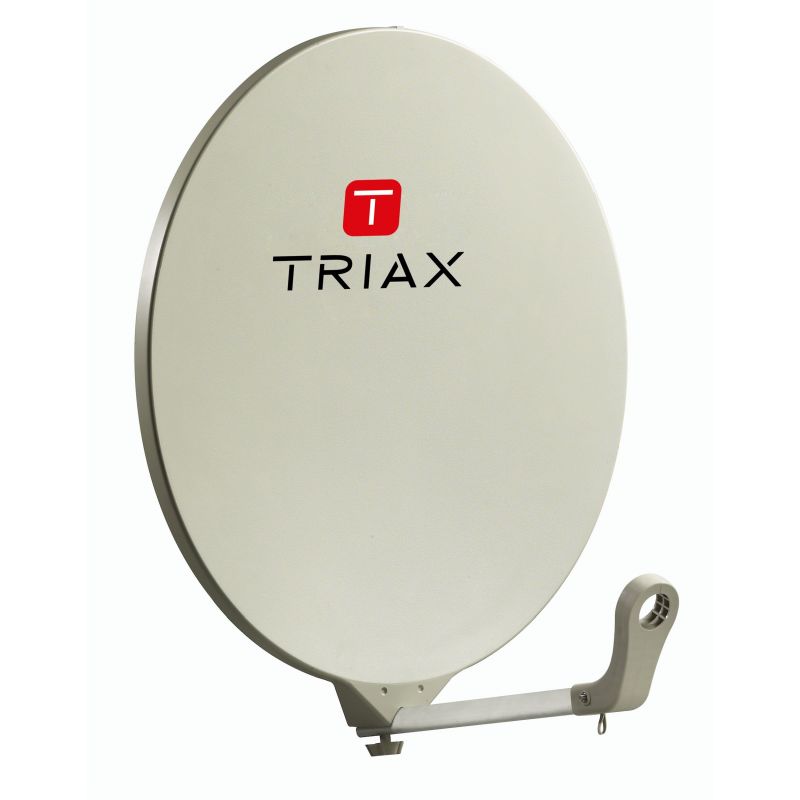

Triax DAP 610 Satellite dish 60cm RAL 1013 White
Fiberglass dishes are the preferred option in some markets. The most durable long-term solutions in difficult environments, for example, in coastal areas or mountainous regions. Efficiency 70. Elevation range 10-55 °. Angle of travel 26 °. Polarization X > 27 dB. Type DAP 610. Color White.
€217.80
Tax included
Reference
triax-362610
Brand
Triax
Triax DAP 610 Satellite dish 60cm RAL 1013 White
€217.80
DAP 610 - RAL 1013. Fibre glass dishes are the preferred choice in some markets. The most durable long-term solutions in difficult environments, for example in coastal areas or mountain regions.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 3700113427899 |
| CHARACTERISTICS | |
| Efficiency | 70 |
| Elevation range | 10-55 ° |
| Offset angle | 26 ° |
| X-polarisation | > 27 dB |
| Type | DAP 610 |
| FREQUENCY | |
| Frequency range | 10.7 - 12.75 GHz |
| GAIN | |
| Gain @ 12.625 GHz | 36.0 dBi |
| Noise temperature | < 35 °K |
| Gain @ 11.7 GHz | 35.5 dBi |
| MECHANICAL | |
| Finish | Alu arm |
| Packaging Depth | 0.006 m |
| Packaging Height | 0.001 m |
| Total Weight |
4.300 kg |
| Packaging Width | 0.007 m |
| LNB holder | Plastic |
| LNB size | Ø 40 mm |
| Mast bracket diameter | Ø 40-60 mm |
| Net Weight | 4.300 kg |
| Reflector type | Offset |
| Remarks | 1 U-Bolt for mast mount |
| Windload @ 42 m/s | 378 N |
| Width (cm) | 56 cm |
| Height (cm) | 61 cm |
| Colour | RAL 1013 - White |
| Product Height | 610 mm |
| Product Length | 560 mm |
| Main material | Fibreglass |
