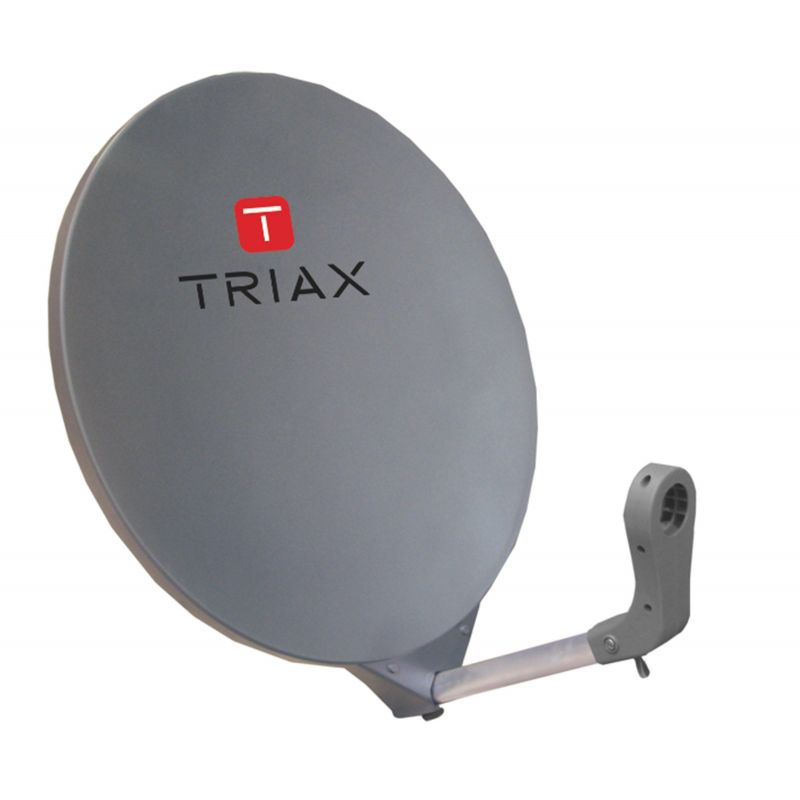

Triax DAP 610 Satellite dish 60cm RAL 7016 Anthracite grey
Fiberglass dishes are the preferred option in some markets. The most durable long-term solutions in difficult environments, for example, in coastal areas or mountainous regions. Efficiency 70. Elevation range 10-55 °. Angle of travel 26 °. Polarization X > 27 dB. Type DAP 610. Color Anthracite grey.
€219.01
Tax included
Reference
triax-362611
Brand
Triax
Triax DAP 610 Satellite dish 60cm RAL 7016 Anthracite grey
€219.01
DAP 611 - RAL 7016. Fibre glass dishes are the preferred choice in some markets. The most durable long-term solutions in difficult environments, for example in coastal areas or mountain regions.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 3700113427905 |
| CHARACTERISTICS | |
| Efficiency | 70 |
| Elevation range | 10-55 ° |
| Offset angle | 26 ° |
| X-polarisation | > 27 dB |
| Type | DAP 610 |
| FREQUENCY | |
| Frequency range | 10.7 - 12.75 GHz |
| GAIN | |
| Gain @ 12.625 GHz | 36.0 dBi |
| Noise temperature | < 35 °K |
| Gain @ 11.7 GHz | 35.5 dBi |
| MECHANICAL | |
| Finish | Alu arm |
| Packaging Depth | 0.006 m |
| Packaging Height | 0.001 m |
| Total Weight |
4.300 kg |
| Packaging Width | 0.007 m |
| LNB holder | Plastic |
| LNB size | Ø 40 mm |
| Mast bracket diameter | Ø 40-60 mm |
| Net Weight | 4.300 kg |
| Reflector type | Offset |
| Remarks | 1 U-Bolt for mast mount |
| Windload @ 42 m/s | 378 N |
| Width (cm) | 56 cm |
| Height (cm) | 61 cm |
| Colour | RAL 7016 - Anthracite grey |
| Product Height | 610 mm |
| Product Length | 560 mm |
| Main material | Fibreglass |
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Fiberglass dishes are the preferred option in some markets. The most durable long-term solutions in difficult environments, for example, in coastal areas or mountainous regions. Efficiency 70. Elevation range 10-55 °. Angle of travel 26 °. Polarization X > 27 dB. Type DAP 610. Color Anthracite grey.
