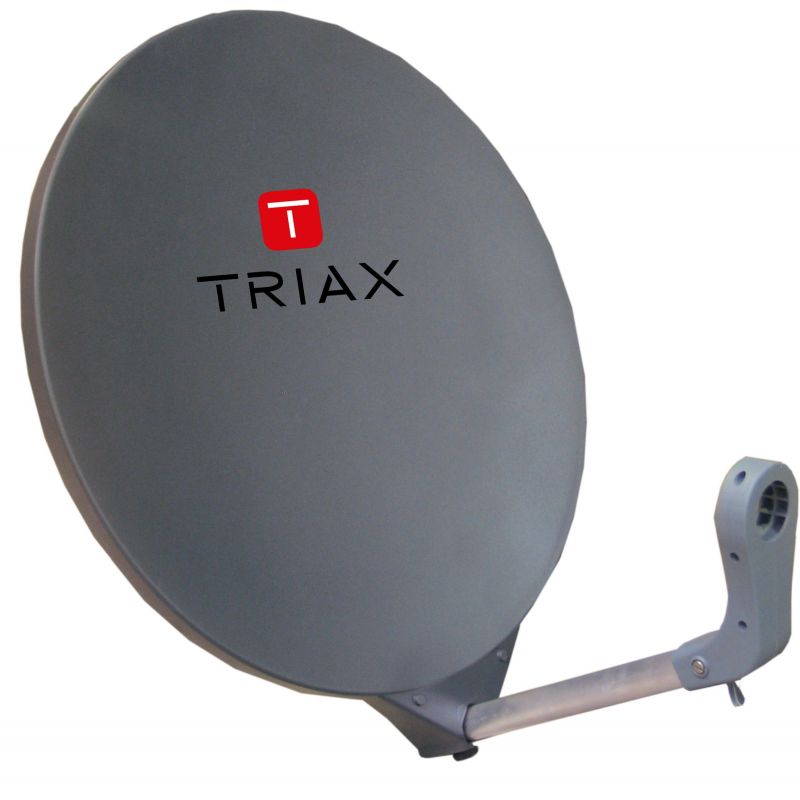

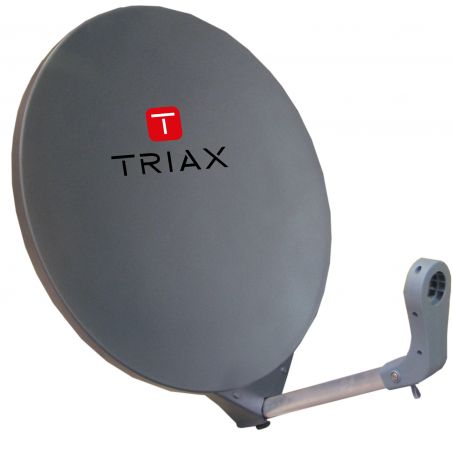

Triax DAP 711 Satellite dish 70cm RAL 7016 Anthracite grey

Fiberglass dishes are the preferred option in some markets. The most durable long-term solutions in difficult environments, for example, in coastal areas or mountainous regions. Efficiency 70. Elevation range 10-55 °. Angle of travel 26 °. Polarization X > 27 dB. Type DAP 711. Color Anthracite grey

€245.63

Tax included

Reference triax-362711

Brand Triax

Triax DAP 711 Satellite dish 70cm RAL 7016 Anthracite grey

€245.63

Description
Product Details

DAP 711 - RAL 7016. Fibre glass dishes are the preferred choice in some markets. The most durable long-term solutions in difficult environments, for example in coastal areas or mountain regions.

Specifications

ORDER INFORMATION
EAN Number	3700113427929
CHARACTERISTICS
Efficiency	70
Elevation range	10-55 °
Offset angle	26 °
X-polarisation	> 27 dB
Type	DAP 711
FREQUENCY
Frequency range	10.7 - 12.75 GHz
GAIN
Gain @ 12.625 GHz	37.3 dBi
Noise temperature	< 35 °K
Gain @ 11.7 GHz	36.5 dBi
MECHANICAL
Finish	Alu arm
Packaging Depth	0.006 m
Packaging Height	0.001 m
Total Weight	4.940 kg
Packaging Width	0.007 m
LNB holder	Plastic
LNB size	Ø 40 mm
Mast bracket diameter	Ø 40-60 mm
Net Weight	4.940 kg
Reflector type	Offset
Remarks	1 U-Bolt for mast mount 2nd U-Bolt P/N 362700
Windload @ 42 m/s	600 N
Width (cm)	66 cm
Height (cm)	72 cm
Colour	RAL 7016 - Anthracite grey
Product Height	720 mm
Product Length	660 mm
Main material	Fibreglass
