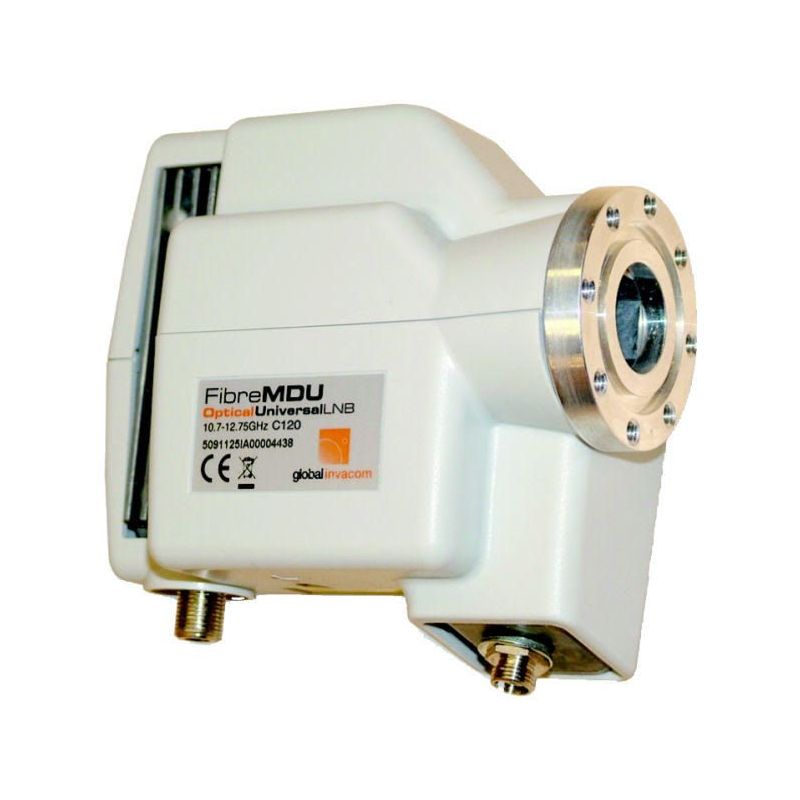

Invacom 1 output Fiber LNB universal C120

The LNB C120 is a high quality optical, high performance universal LNB. In addition to excellent performance provided by a LNB 1310 nm broadband optical output in the four satellite polarities are stacked in a range of frequencies (from 950 to 5,450 MHz).

€192.00
Tax included
Reference F926012
Brand Invacom
Quantity
Available in 24/48h

Free shipping
Invacom 0.3 dB 1 salida Fibra LNB universal

Invacom 1 output Fiber LNB universal C120

€192.00

The LNB C120 is a high quality optical, high performance universal LNB C120. In addition to excellent performance provided by a LNB 1310 nm broadband optical output in the four satellite polarities are stacked in a range of frequencies (from 950 to 5,450 MHz).
The Global Fund for Invacom LNB fiber optic has a single optical output that converts the signals of a satellite from a light signal. The LNB has a standard 40mm power horn for mounting on a standard 80cm satellite balanced dish.
The LNB output can be distributed, the use of single mode fiber optic cable, through a passive optical network (PON) of up to 32 points (short or long distances).
In each of the possible 32 points of the optical fiber is distributed to LNB, the fiber can be connected to a global network of Invacom Virtual Twin, Virtual Quad or Virtual Quattro to convert it to the SI (coaxial cable).
The Global Fund for Invacom LNB fiber also has an F connector output that is used to supply power to the LNB through the coaxial cable connected to a DC insertion device (DSI) and the power supply (PSU) the two are powered with the fiber optic LNB.

World Wide Invacom S FibreMDU allows up to 32 homes, multiswitchs or a combination of both to receive all digital signals from a satellite through a single 3mm fiber optic cable.

Features

  • Reduced installation time and complexity
  • Does not require grounding
  • Long cable runs (kilometers) are not a problem using standard FibreMDU equipment
  • It is not required to compensate the slope
  • Use a single 3mm shielded fiber optic cable (GI-3.0) instead of four coaxial for trunk cable runs
  • Connecting individual fiber at home feedup to four satellite STB digital tuners.

Specifications

Input Frequency

10.7 - 12.75 GHz

Output Frequency

Modulated Laser Output

950 -5.45GHz

1310nm

Noise Figure

Typical at 25°C 0.5dB

Max & Min Gain

72 - 62dB

Phase Noise

1 KHz -55dBc/Hz 10KHz -80dBc/Hz 100KHz -100dBc/Hz 1MHz -110dBc/Hz

Connectors

F type and FC/PC
