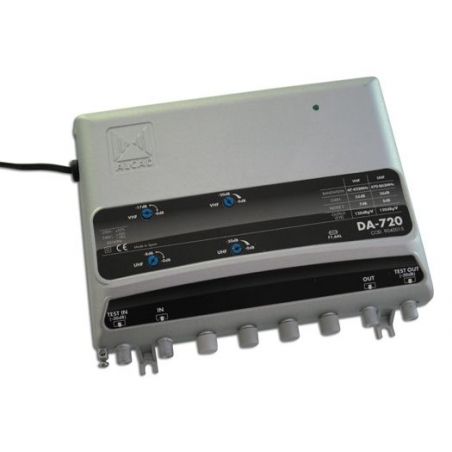

Broadband distribution amplifier for terrestrial TV. It amplifies the VHF band plus interbands and the UHF band separately. Each band has a gain control and a variable equaliser. As they are independent they facilitate level djustment. Fed by a built-in power supply.

Applications

• Used as a distribution amplifier in large community installations or cable networks.
• These installations commonly have long runs of cable which attenuate and unbalance the signal.
• The channels with higher frequencies attenuate more.
• The distribution amplifiers compensate this loss with the equaliser and amplify the channels adding as little noise as possible.
• The separated band amplifiers do not amplify the highest channels of the interband.

Features

• Made from zamak and galvanised plate for maximum shielding.
• Separate housings for the power supply unit and the high frequency circuit.
• F type connectors, located on the lower part to help with the installation.
