NANO serie antennas. Reduced size and easy to install.

€32.07
Tax included
Reference ikusi-1825
Brand Ikusi
Quantity
Available Now

Free shipping
Ikusi HDTN-694V Nano Antenna channel 48 (2sd Dividend)

Ikusi HDTN-694V Nano Antenna channel 48 (2sd Dividend)

€32.07

IKUSI HDTN-694V. NANO serie antennas. Reduced size and easy to install.

Features

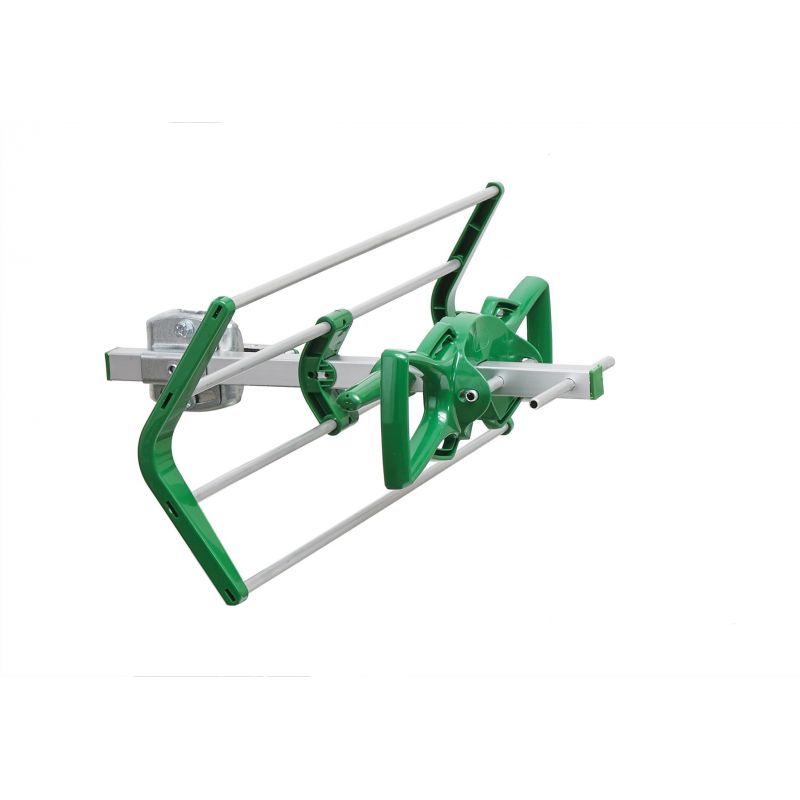

  • The smallest antenna range FLASHD for reception of TV signals in the UHF band, formed by a dihedral reflector made up of four aluminium tubes and a dipole (the same as the one in the FLASHD antenna).
  • For vertical and horizontal polarization, allowing variation of elevation angle.
  • Minimum packaging volume for transport and easy assembly without tools.
  • Versatility in the pallet from 30cm to the desired height, in increments of 10cm
  • Cable connection: F type connector. 1 screw-on plug and 1 rubber protection cap are supplied.
  • Clamping system for masts Ø 25 to 50 mm

Technical specifications

REF. 1825 1813
Channels 21 - 48 (470-694 MHz) 21 - 60 (470-790 MHz)
Nominal gain dB 12
Front-to-back ratio dB ≥ 16
Beamwidth H / V 60º / 80º
Windload N 130 Km/h : 15
150 Km/h : 20
Length cm 50
Quantity boxed 5
Color green



Manual/Datasheet
