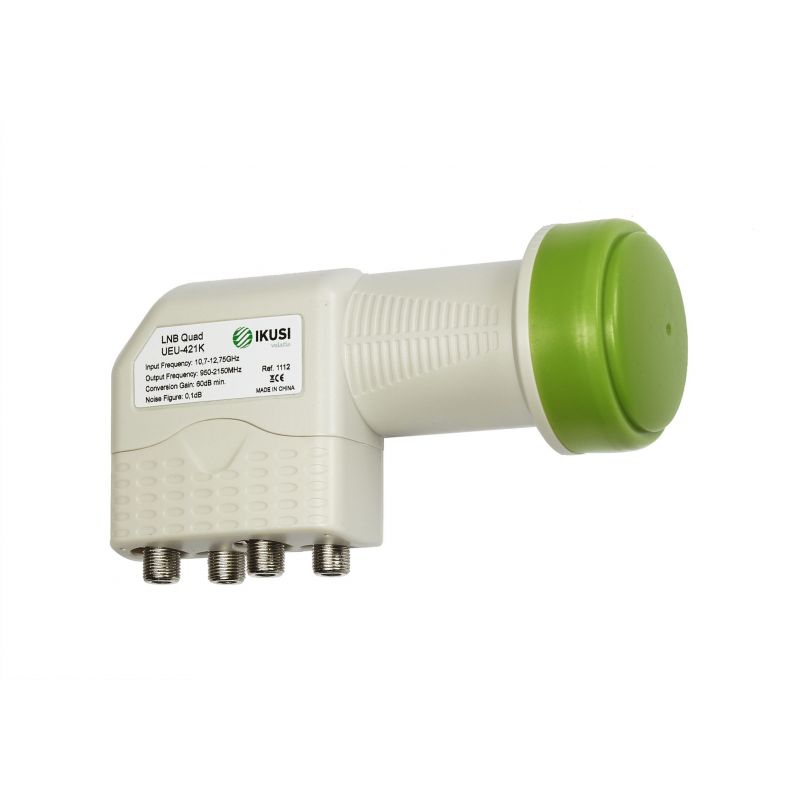

Ikusi UEU-421K Quad LNB 4 users

Satellite reception LNB Offset UEU Series

€50.82

Tax included

Reference ikusi-1112

Brand Ikusi

Ikusi UEU-421K Quad LNB 4 users

€50.82

Description
Product Details

IKUSI UEU-421K. Satellite reception LNB Offset UEU Series

Features

UNIVERSAL, single output. Installation for a single receiver

TWIN, two direct outputs for two receivers

QUAD, four direct outputs for four receivers

QUATTRO, four outputs with separate polarities for use with multiswitches

Technical specifications

REF.		1113	3083	1112	1114
Type		UNIVERSAL	TWIN	QUAD	QUATTRO
Input frequency	GHz	10.70 - 12.75
Local oscillator	GHz	Low band 9.75 High band 10.60
Local Oscillator Temperature Drift (@ -40 ~ 60 °C)	MHz	± 3
Output frequency	MHz	950 - 2150
Phase noise at 10 kHz	dBc/Hz	-80
Gain	dB	60 (±2)
Noise figure typ	dB	0,2	0,2	0,2	0,2
IF output		1 (VL or VH or HL or HH)	2 (VL or VH or HL or HH)	4 (VL or VH or HL or HH)	4 (VL) (VH) (HL) (HH)
Control tone		low band 0 Hz high band 22 kHz	low band 0 Hz high band 22 kHz	low band 0 Hz high band 22 kHz	low band 0 Hz high band 22 kHz
Consumption	mA	100	190	210	190
Reletive humidity	%	0 - 95	0 - 95	0 - 95	0 - 95
Power supply	VDC	vert.: 11 - 14 hor.: 16 - 20	vert.: 11 - 14 hor.: 16 - 20	vert.: 11 - 14 hor.: 16 - 20	vert.: 11 - 14 hor.: 16 - 20
