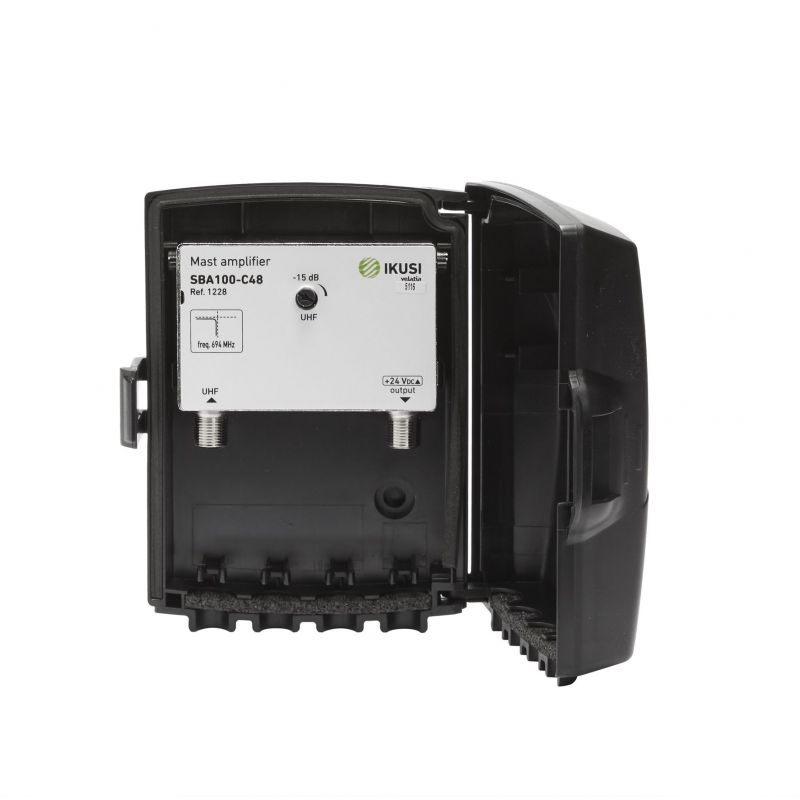

Ikusi SBA-100-C48 Amplifier 1 UHF input channels 21-48, 40 dB
search
  • Ikusi SBA-100-C48 Amplifier 1 UHF input channels 21-48, 40 dB

Ikusi SBA-100-C48 Amplifier 1 UHF input channels 21-48, 40 dB

Multiband mast amplifiers Adapted to the first and second digital dividend.

This model is replaced by the Ikusi SBA-103-C48

€35.09
Tax included
Reference ikusi-1228
Brand Ikusi
Quantity
Available Now

Free shipping
Ikusi SBA-100-C48 Amplifier 1 UHF input channels 21-48, 40 dB

Ikusi SBA-100-C48 Amplifier 1 UHF input channels 21-48, 40 dB

€35.09

This model is replaced by the Ikusi SBA-103-C48

IKUSI SBA-100-C48. Multiband mast amplifiers Adapted to the first and second digital dividend.

Features

  • Adapted to the first and second digital dividend
  • Very high UHF gain.
  • Interstage variable attenuators.
  • Optimum design for very low operative noise figure.
  • Internal injection-moulded zinc alloy housing with F type ports.

Technical specifications

MODEL
SBA100-C60 SBA100-C48		 REF. SBA100 series
1227 Frequency range MHz 470 - 790 (1st dividend)
1228 470 - 694 (2nd dividend)
RF inputs 1
UHF
Nominal gain dB > 40
Gain adjustment dB 0 - 15
Noise figure dB ≤ 2
Output level (DIN-B, -60dB) dBµV 106
Operation voltage VDC +24
Consumption mA 55
Dimensions mm 96 x 125 x 46



Manual/Datasheet
