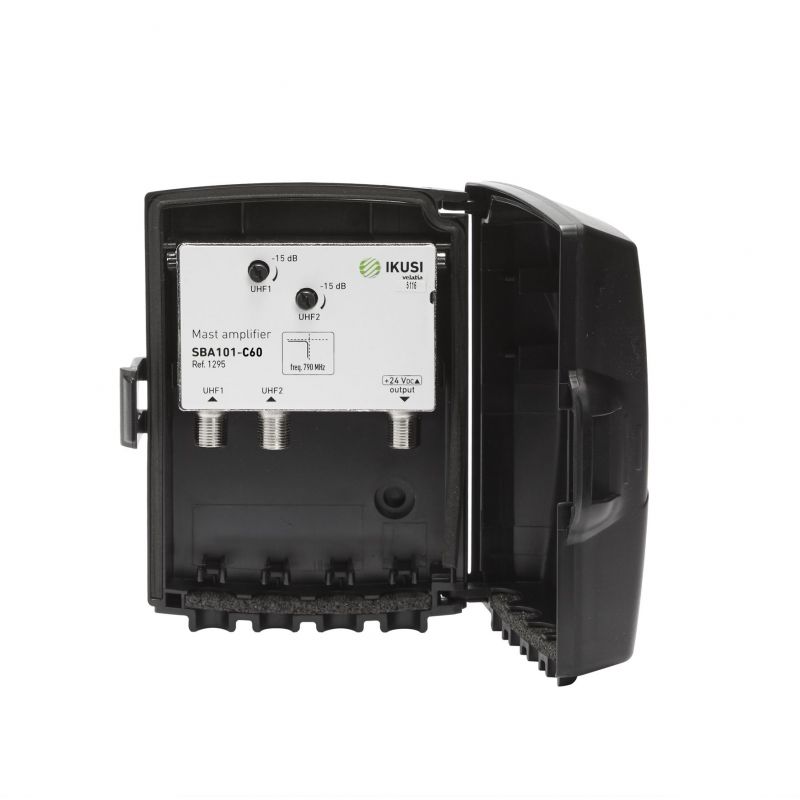

Ikusi SBA-101-C60 Amplifier 2 UHF inputs. channels 21-60, 36 dB
search
  • Ikusi SBA-101-C60 Amplifier 2 UHF inputs. channels 21-60, 36 dB

Ikusi SBA-101-C60 Amplifier 2 UHF inputs. channels 21-60, 36 dB

Multiband mast amplifiers Adapted to the first and second digital dividend.

€37.51
Tax included
Reference ikusi-1295
Brand Ikusi
Quantity
Available Now

Free shipping
Ikusi SBA-101-C60 Amplifier 2 UHF inputs. channels 21-60, 36 dB

Ikusi SBA-101-C60 Amplifier 2 UHF inputs. channels 21-60, 36 dB

€37.51

IKUSI SBA-101-C60. Multiband mast amplifiers Adapted to the first and second digital dividend.

Features

  • Adapted to the first and second digital dividend
  • Very high UHF gain.
  • Interstage variable attenuators.
  • Optimum design for very low operative noise figure.
  • Internal injection-moulded zinc alloy housing with F type ports.

Technical specifications

MODEL
SBA101-C60 SBA101-C48		 REF. SBA101 Series
1295 Frequency range MHz 470 - 790 (1st dividend)
1296 470 - 694 (2nd dividend)
RF inputs 2
UHF UHF
Nominal gain dB >36
Gain adjustment dB 0 - 15
Noise figure dB < 5
Output level (DIN-B, -60dB) dBµV 105
Input isolation dB ≥26
Operation voltage VDC +24
Consumption mA 55
Dimensions mm 96 x 125 x 46
