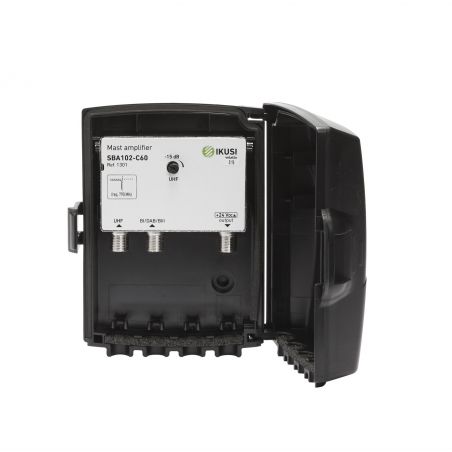

Ikusi SBA-102-C60 Amplifier 2 VHF/UHF inputs (channels 21-60)
Multiband mast amplifiers Adapted to the first and second digital dividend.
€37.51
Tax included
Reference
ikusi-1301
Brand
Ikusi
Ikusi SBA-102-C60 Amplifier 2 VHF/UHF inputs (channels 21-60)
€37.51
IKUSI SBA-102-C60. Multiband mast amplifiers Adapted to the first and second digital dividend.
Features
- Adapted to the first and second digital dividend
- Very high UHF gain.
- Interstage variable attenuators.
- Optimum design for very low operative noise figure.
- Internal injection-moulded zinc alloy housing with F type ports.
Technical specifications
| MODEL SBA102-C60 SBA102-C48 |
REF. | SBA102 Series | |||||||
| 1301 | Frequency range MHz | 470 - 790 (1st dividend) | 47 - 240 | ||||||
| 1302 | 470 - 694 (2nd dividend) | ||||||||
| RF inputs | 2 | ||||||||
| UHF | BI/FM/DAB/BIII | ||||||||
| Nominal gain | dB | 25 | -1 | ||||||
| Gain adjustment | dB | 0 - 15 | - | ||||||
| Noise figure | dB | ≤ 2 | 1 | ||||||
| Output level (DIN-B, -60dB) | dBµV | 106 | |||||||
| Input isolation | dB | ≥26 | |||||||
| Operation voltage | VDC | +24 | |||||||
| Consumption | mA | 45 | |||||||
| Dimensions | mm | 96 x 125 x 46 | |||||||
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Multiband mast amplifiers Adapted to the first and second digital dividend.
