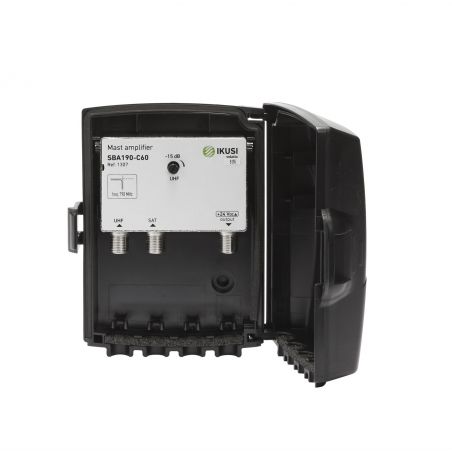

Ikusi SBA-190-C60 Amplifier 2 UHF inputs (channels 21-60)/IF Satellite
search
  • Ikusi SBA-190-C60 Amplifier 2 UHF inputs (channels 21-60)/IF Satellite

Ikusi SBA-190-C60 Amplifier 2 UHF inputs (channels 21-60)/IF Satellite

Multiband mast amplifiers Adapted to the first and second digital dividend.

€38.72
Tax included
Reference ikusi-1307
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi SBA-190-C60 Amplifier 2 UHF inputs (channels 21-60)/IF Satellite

Ikusi SBA-190-C60 Amplifier 2 UHF inputs (channels 21-60)/IF Satellite

€38.72

IKUSI SBA-190-C60. Multiband mast amplifiers Adapted to the first and second digital dividend.

Features

  • Adapted to the first and second digital dividend
  • Very high UHF gain.
  • Interstage variable attenuators.
  • Optimum design for very low operative noise figure.
  • Internal injection-moulded zinc alloy housing with F type ports.

Technical specifications

MODEL
SBA190-C60 SBA190-C48		 REF. SBA190 Series
1307 Frequency range MHz 470 - 790 (1st dividend) 950 - 2400
1308 470 - 694 (2nd dividend)
RF inputs 2
UHF SAT
Nominal gain dB 35 -2
Gain adjustment dB 0 - 15 -
Noise figure dB ≤ 2
Output level (DIN-B, -60dB) dBµV 105 -
Input isolation   ≥26
Operation voltage VDC +12 / +24
In the case of not using the SAT input, it can be supplied with +24 VDC
Consumption mA 40
Dimensions mm 96 x 125 x 46



Manual/Datasheet
