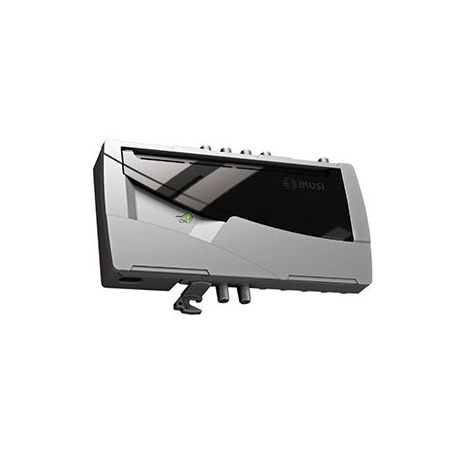

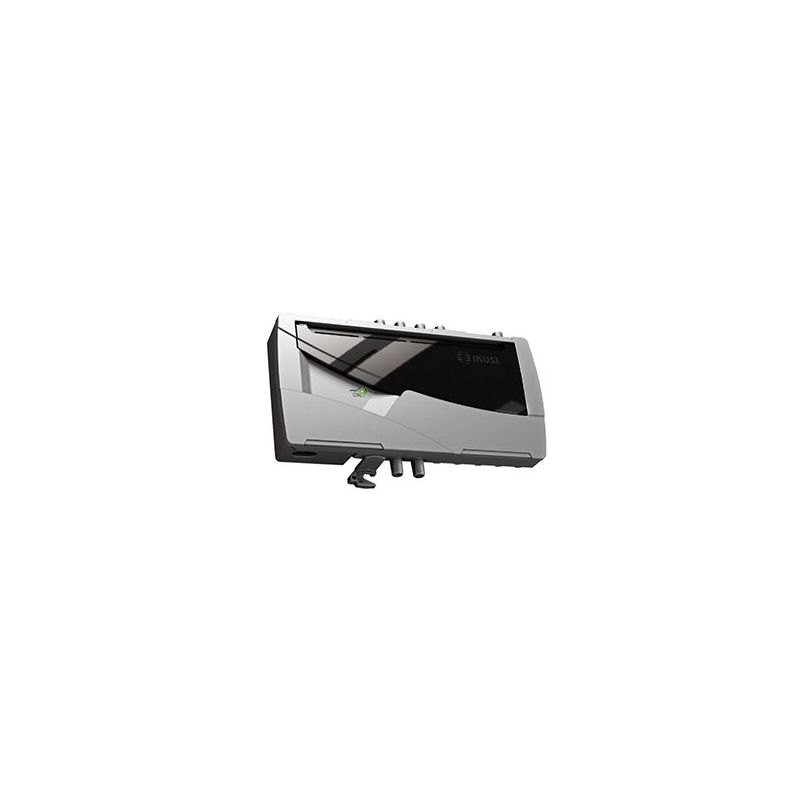

Ikusi NBS-801-C48 Amplification centre 1 input UHF
search
  • Ikusi NBS-801-C48 Amplification centre 1 input UHF

Ikusi NBS-801-C48 Amplification centre 1 input UHF

Terrestrial and Satellite headend amplifiers. Amplifies, equalizes and combines analog or digital radio and television signals in medium size facilities

€146.41
Tax included
Reference ikusi-3573
Brand Ikusi
Quantity
Last items in stock

Free shipping
Ikusi NBS-801-C48 Amplification centre 1 input UHF

Ikusi NBS-801-C48 Amplification centre 1 input UHF

€146.41

IKUSI NBS-801-C48. Terrestrial and Satellite headend amplifiers. Amplifies, equalizes and combines analog or digital radio and television signals in medium size facilities

Features

  • Adapted to the first and second digital dividend.
  • High-power broadband amplifiers, for terrestrial and satellite signals in small installations. NBS800 series high-power broadband amplifiers, NBS600 series mid-power broadband amplifiers.
  • Interstage input attenuators.
  • Powered by switching power supply, in removable box.
  • Power passing to input.
  • Zamak housing with protective cover for adjustment potentiometers.
  • F Connectors. Wall fixing and indoor mounting.
  • Grounding terminal.
  • Compatible with UNICABLE TM.

Technical specifications

Model (Ref.) NBS801-C60 (3572)
NBS801-C48 (3573)		 NBS804-C60 (3563)
NBS804-C48 (3564)		 NBS604-C60 (3566)
NBS604-C48 (3567)		 NBS895-C60 (3575)
NBS895-C48 (3576)		 NBS695-C60 (3569)
NBS695-C48 (3570)
Inputs 1 4
BI/FM - BIII/DAB - 2xUHF		 5
BI/FM - BIII/DAB -2xUHF - SAT IF
Frequency range MHz 45-790    NBS801-C60
45-694    NBS801-C48		 BI/FM:     45-112
BIII/DAB:  174-240
2xUHF:
470-790  NBS804/604-C60
470-694  NBS804/604-C48		 BI/FM:    45-112
BIII/DAB: 174-240
2xUHF:
470-790  NBS895/695-C60
470-694  NBS895/695-C48
FI-SAT:   950-2400
Gain dB 42 BI/FM:       42
BIII/DAB:    42
2xUHF:       45		 36
36
39		 BI/FM:        42
BIII/DAB:     42
2xUHF:        45
SAT IF:        40		 36
36
39
34
Gain adjustment dB 0 - 18 0 - 18 0 - 18
Slope control range dB 0 - 12 — SAT IF : 0 / 6
bridge
Response flatness dB ±2 BI/FM: BIII/DAB: 2xUHF: ±2
±2
±1,5		 BI/FM: BIII/DAB: 2xUHF: SAT IF: ±2
±2
±1,5
±2
Outputs 1 1 1
Outputs test dB -30 -30 -30
Output level dBμV * 118 BI/FM:         118
BIII/DAB:      118
2xUHF:        118		 BI/FM:       112
BIII/DAB:    112
2xUHF:      112		 BI/FM:          118
BIII/DAB:       118
2xUHF:           118
** SAT IF:       120		 BI/FM:         112
BIII/DAB:      112
2xUHF:         112
** SAT IF:     114
Noise figure dB 6 BI/FM: BIII/DAB: 2xUHF: 6
6
8		 BI/FM: BIII/DAB: 2xUHF: SAT IF: 6
6
8
9
Input/output return loss dB 10 10 BI/FM-BIII/DAB-2xUHF: 10
SAT IF: 6
Voltage/current preamplifier mast   12-24V
100mA		 UHF2: 12-24V 100 mA UHF2: 0-12-24 V · 100 mA SAT IF: 0-13-18V · 100 mA LNB: 0-22 kHz
Mains supply voltage (+10? -15  ) VAC 230-240 230-240 230-240
Consumption W 8 8 5 16 8



Manual/Datasheet
