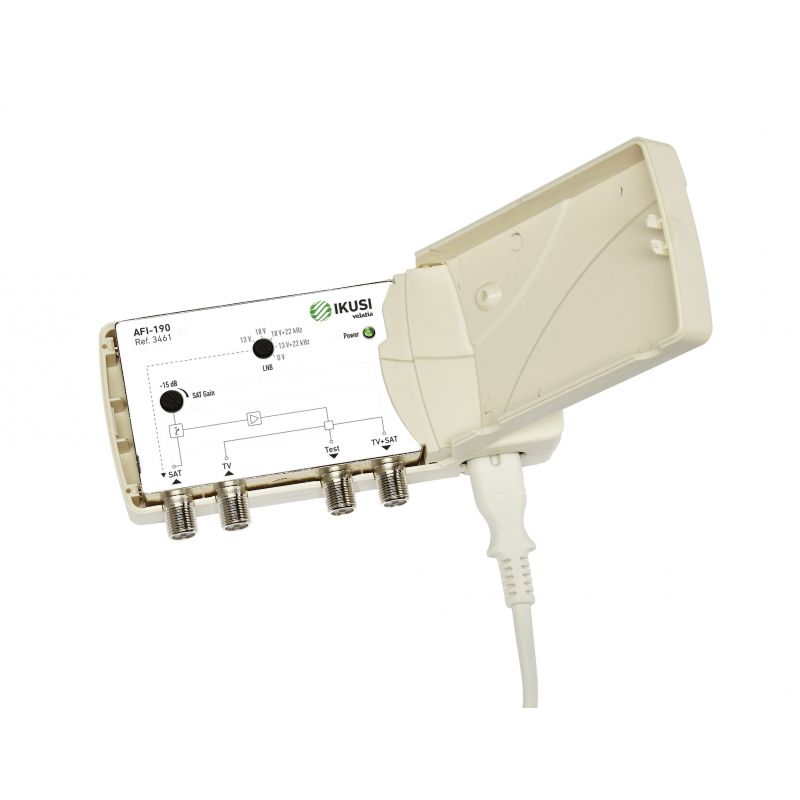

Ikusi AFI-190 Independent amplifier IF-SAT
search
  • Ikusi AFI-190 Independent amplifier IF-SAT

Ikusi AFI-190 Independent amplifier IF-SAT

Sat-IF Combiner/Amplifier. Unit to amplify a satellite polarity

€91.96
Tax included
Reference ikusi-3461
Brand Ikusi
Quantity
Available Now

Free shipping
Ikusi AFI-190 Independent amplifier IF-SAT

Ikusi AFI-190 Independent amplifier IF-SAT

€91.96

IKUSI AFI-190. Sat-IF Combiner/Amplifier. Unit to amplify a satellite polarity

Features

  • 1 satellite 950-2450 MHz input port, with gain adjustment potentiometer;

1 terrestrial coupling 5-790 MHz input port;

1 satellite+Terrestrial output port;

1 output test port.

  • Line powering of LNB. Voltage/tone injection for selection of polarity and band by rotary commutator.
  • Universal alternating power supply. Electrical safety protection level Class II. Insertable power cord with bipolar plug.
  • Plastic box with protective cover. F type connectors.
  • Indoor mounting through an fixing hanger.
  • Technical specifications
REF. 3461
TV frequency band MHz 5 - 790
SAT frequency Band MHz 950 - 2450
Inputs (TV and SAT)   2
Salida (TV+SAT)   1
TV+SAT output test dB -30
TV Gain (passive) dB -1
SAT Gain dB > 34
SAT gain adjustment dB 0 - 15
Output level (IMD3 -35 dB, EN 50083-3) dBμV 120
Input/output return loss dB ≥ 6
Noise figure dB < 8
Mains supply voltage VAC 100 - 240
Regulation type   Switched mode
Insertable Voltage/Tone to SAT input port   0V ; 13V+22kHz ; 18V+22kHz ; 18V ; 13V
Max LNB power current mA 200 (+13 VDC / +18 VDC)
Consumption W < 6
Dimensions mm 120 x 85 x 50



Manual/Datasheet
