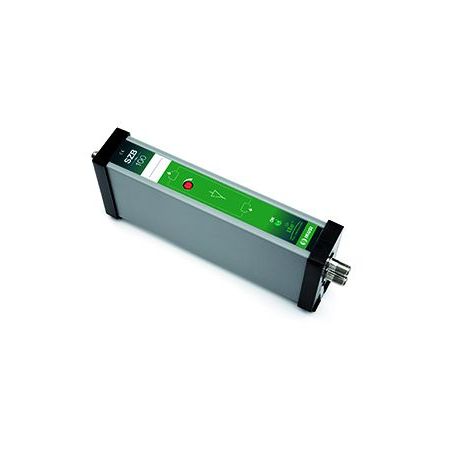

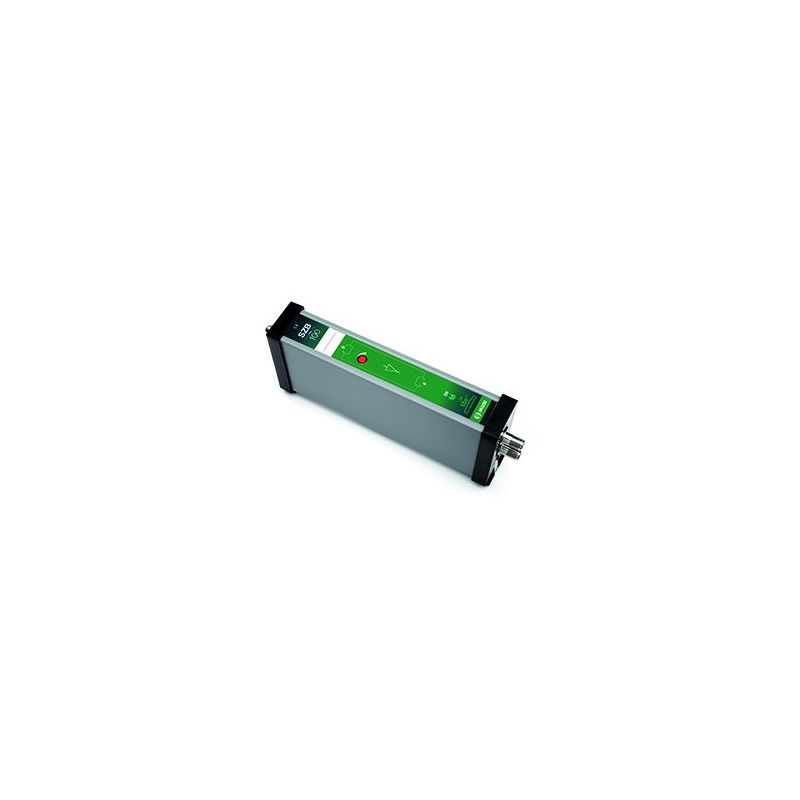

Ikusi SZB-180 Multi-channel amplifier UHF SZB
Modular Headend amplifier channel TV and Radio. TV amplifiers single-channels, multichannels, modulators and Sat-IF combiner ready for digital dividend.
€131.89
Tax included
Reference
ikusi-2248
Brand
Ikusi
Ikusi SZB-180 Multi-channel amplifier UHF SZB
€131.89
IKUSI SZB-180. Modular Headend amplifier channel TV and Radio. TV amplifiers single-channels, multichannels, modulators and Sat-IF combiner ready for digital dividend.
Features
- TV single-channel amplifiers, Z input de-multiplexing and Z output multiplexing. Adjacent channel operation allowed in UHF band.
- FM Radio and DAB Amplifiers.
- It is advisable to place the amplifiers on the base-plate following an increasing order of number of channel (frequency). The RF output of the headend will be taken from the last one of the modules ordered in this way.
- Especially created for amplification of combined analog and digital channels.
- Output voltage +24 VDC is automatically connected to the RF modules through a connecting bar at the base-plate.
- Toolless mounting.
Technical specifications
| REF. | 2248 | |||
| Bandwidth | 2 UHF channels | 3 UHF channels | 4 UHF channels | |
| Gain | dB | 60 | ||
| Noise figure | dB | 5 | ||
| Output level | dBµV | (2x) 118 | (2x) 116 | (2x) 115 |
| Z Output return loss | dB | ≥ 6 | ||
| Consumption | mA | 100 | ||
| Dimensions | mm | 190 x 38 x 87 | ||
