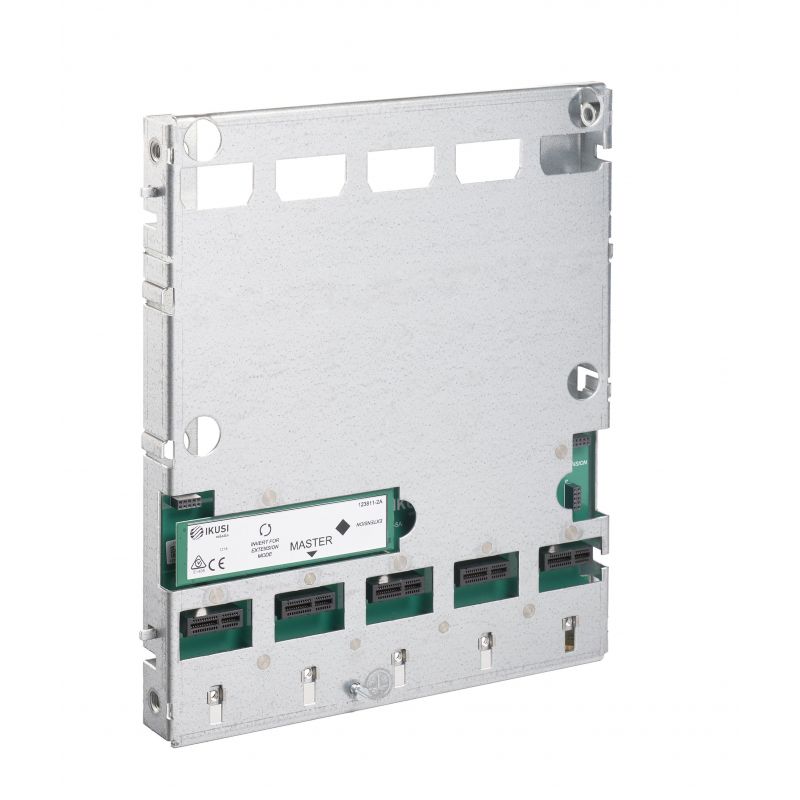

Ikusi BACK-500 Base-plate for HTI Headend
Base-plate for HTI Headend. The BACK-500 base-plate allows to fix mechanically the HTI product range modules, to distribute the supply lines and to communicate the different modules that are inserted in the headend.
€157.30
Tax included
Reference
ikusi-3866
Brand
Ikusi
Ikusi BACK-500 Base-plate for HTI Headend
€157.30
IKUSI BACK-500. Base-plate for HTI Headend. The BACK-500 base-plate allows to fix mechanically the HTI product range modules, to distribute the supply lines and to communicate the different modules that are inserted in the headend.
Features
- The base-plate is formed by two parts:
- 1. Backplane
- 2. USB bridge
- The backplane is in charge of fixing the modules, distributing the power supply and carrying the communication lines towards the USB bridge.
- The USB bridge in in charge of connection all the modules that are inserted in the base-plate with the master module.
- Interconnected base-plate, does not need alimentation bridges between modules.
- The base-plate can be fixed to the wall or in a rack frame by means SR-HTI of fixing accessories (joining 2 base-plates.
Technical specifications
| REF. | 3866 |
| Number of solts | 5 |
| Connectors type | PCIe |
| Dimensions | 210 x 257 x 24 mm |
| Packaged weight | 1 kg |
