Ikusi HTA-125 47-862 MHz Broadband power amplifier
search
  • Ikusi HTA-125 47-862 MHz Broadband power amplifier

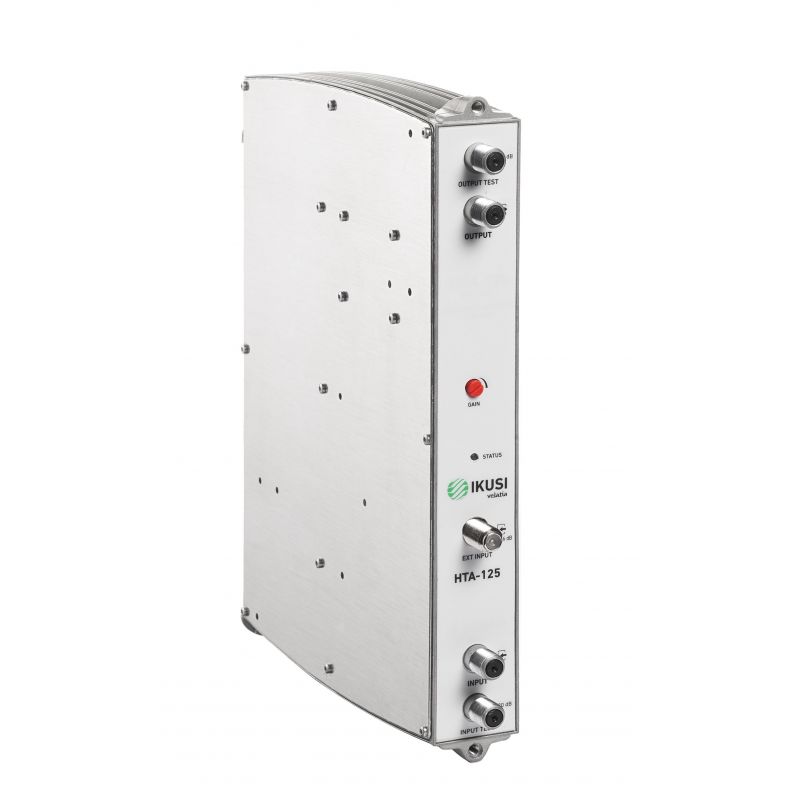

Ikusi HTA-125 47-862 MHz Broadband power amplifier

Power amplifier. Amplification of the signal generated by a headend of HTI modules.

€266.20
Tax included
Reference ikusi-3868
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi HTA-125 47-862 MHz Broadband power amplifier

Ikusi HTA-125 47-862 MHz Broadband power amplifier

€266.20

IKUSI HTA-125. Power amplifier. Amplification of the signal generated by a headend of HTI modules.

Features

  • Amplification of RF signals of HTI headends.
  • Variable attenuation is shared on two interstage sections, featuring delayed behaviour on the first one. Maintenance of a low noise figure.
  • Extension input allows coupling of the wideband signal provided by another existing headend.

Technical specifications

REF. 3868
Bandwidth MHz 47 - 862
Gain dB 45
Interstage variable attenuator dB 0 - 20
Noise figure dB ≤ 6
Output level (IMD3 -60dB, DIN 45004B) dB ≥ 125
Output level (IMD2 -60dB, EN 50083-3) dBμV ≥ 120
Input test dBμV -20 ±1.5
Output test dB -30 ±1
Extension input Bandwidth MHz 47 - 862
Gain dB 6
Supply voltage VDC +24
Consumption mA 450
Operating temperature ºC -10... +45
RF and Test connectors   Female F
Dimensions mm 230 x 195 x 32



Manual/Datasheet
