Ikusi UDM-615 Tap 6 output 15 dB
search
  • Ikusi UDM-615 Tap 6 output 15 dB

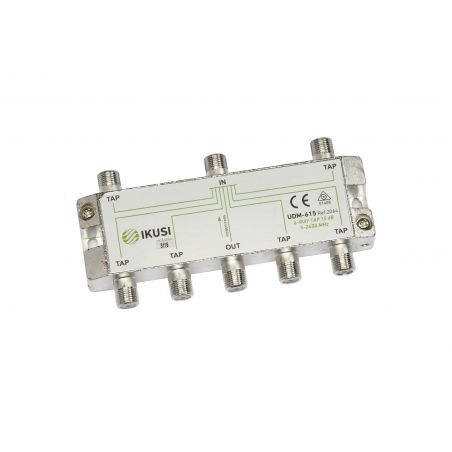

Ikusi UDM-615 Tap 6 outputs 15 dB

UDM Taps 2400 MHz indoor multi-taps.

€10.77
Tax included
Reference ikusi-2064
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi UDM-615 Tap 6 output 15 dB

Ikusi UDM-615 Tap 6 outputs 15 dB

€10.77

IKUSI UDM-615 . UDM Taps 2400 MHz indoor multi-taps.

Features

  • 1, 2, 4, 6 and 8 way shielded directional tap-offs.
  • Frequency range 5-2400 MHz.
  • DC tansit on the main line.

Technical specifications

REF. 2064 2065 2066
Outputs   6
Tap loss (± 1dB) dB 15 20 25
Through loss 5-862 MHz dB ≤ 4.8 ≤ 4.8 ≤ 3.2
950-2150 MHz ≤ 5.7 ≤ 4.8 ≤ 3.8
2150-2400 MHz ≤ 7 ≤ 5 ≤ 4.3
Directional isolation 5-300 MHz dB ≥ 30 ≥ 37 ≥ 37
301-862 MHz ≥ 30 ≥ 33 ≥ 37
950-2400 MHz ≥ 23 ≥ 25 ≥ 27
Tap-to-tap isolation 5-300 MHz dB ≥ 30 ≥ 29 ≥ 30
301-862 MHz ≥ 28 ≥ 26 ≥ 26
950-2400 MHz ≥ 28 ≥ 24 ≥ 26
