Ikusi MSC-0910 Cascadable multiswitch 9 inputs 10 outputs -10 dB
search
  • Ikusi MSC-0910 Cascadable multiswitch 9 inputs 10 outputs -10 dB

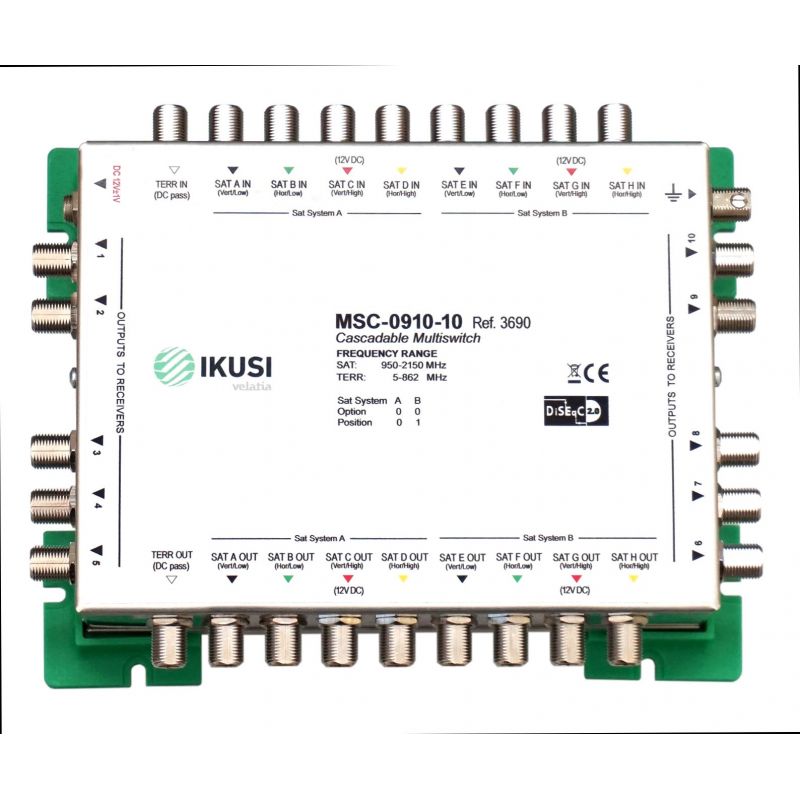

Ikusi MSC-0910 Cascadable multiswitch 9 inputs 10 outputs -10 dB

Cascadable multiswitch 9 inputs. Distribution of 8 SAT-IF polarizations and 1 terrestrial TV signal

€220.22
Tax included
Reference ikusi-3690
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi MSC-0910 Cascadable multiswitch 9 inputs 10 outputs -10 dB

Ikusi MSC-0910 Cascadable multiswitch 9 inputs 10 outputs -10 dB

€220.22

IKUSI MSC-0910. Cascadable multiswitch 9 inputs. Distribution of 8 SAT-IF polarizations and 1 terrestrial TV signal

Features

  • Maximum recommended number of user outputs in a single cascade is 64.
  • Stepped insertion loss on user outputs.
  • Indoor mounting and wall fixing.
  • European product.

Technical specifications

REF. 3688 3689 3690 3691 3692 3693 3694 3695
Número de entradas 9 (8 SAT+1 TERR)
Número de salidas 9
Número de salidas para el usuario 6 6 10 10 16 16 20 20
Banda de frecuencias SAT MHz 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150 950 - 2150
Banda de frecuencias TERR MHz 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862 5 - 862
Pérdidas de inserción SAT línea troncal dB 2 2 2,5 2,5 3 3 3,5 3,5
Pérdidas de inserción TERR línea troncal dB 3 3 4 4 7 7 8 8
Pérdidas de inserción SAT línea usuario dB 10 15 10 15 12 17 12 17
Pérdidas de inserción TERR derivación dB 18 18 22 22 26 26 28 28
Desacoplo entre polaridades H/V en las salidas de usuario dB 22 22 22 22 20 20 20 20
Desacoplo entre bandas L/H en las salidas de usuario dB 22 22 22 22 22 22 22 22
Desacoplo entre líneas troncales dB 25 25 25 25 25 25 25 25
Nivel de entrada máxima SAT dBµV 105 105 105 105 105 105 105 105
Nivel de entrada máxima TERR dBµV 105 105 105 105 105 105 105 105
Nivel de salida máxima usuario SAT dBµV 95 90 95 90 93 88 93 88
Nivel de salida máxima usuario TERR dBµV 87 87 83 83 79 79 77 77
Consumo de receptores mA 80 80 80 80 80 80 80 80
Temperatura de funcionamiento ºC -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60 -25 ... +60
Dimensiones (ancho x profundo x alto) cm 18,6 x 14,6 x 5,1 18,6 x 14,6 x 5,1 18,6 x 14,6 x 5,1 18,6 x 14,6 x 5,1 18,6 x 24,5 x 5,1 18,6 x 24,5 x 5,1 18,6 x 24,5 x 5,1 18,6 x 24,5 x 5,1



Manual/Datasheet
