SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 29SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 8537 AND id_lang = 1 Ikusi MSA-005 Amplifier 4 IF SAT + Terrestrial

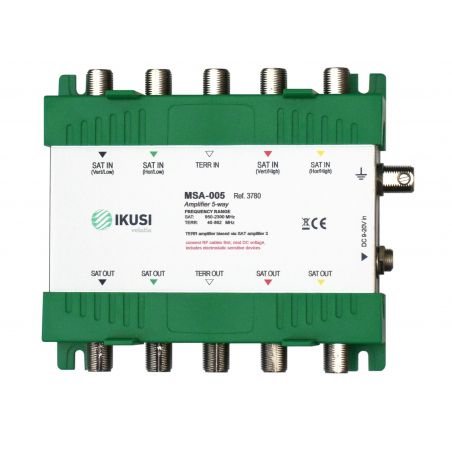

Ikusi MSA-005 Amplifier 4 IF SAT + Terrestrial
search
  • Ikusi MSA-005 Amplifier 4 IF SAT + Terrestrial

Ikusi MSA-005 Amplifier 4 IF SAT + Terrestrial

Amplifier 4 IF SAT + Terrestrial. A solution for compensating through losses of multiswiches, taps, splitters

€193.60
Tax included
Reference ikusi-3780
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi MSA-005 Amplifier 4 IF SAT + Terrestrial

Ikusi MSA-005 Amplifier 4 IF SAT + Terrestrial

€193.60

IKUSI MSA-005 . Amplifier 4 IF SAT + Terrestrial. A solution for compensating through losses of multiswiches, taps, splitters

Features

  • Adjustables slope response for satellite frequences.
  • All models with power supply included, MSA-005 except.
  • European product.
  • Indoor mounting and wall fixing

Technical specifications

REF. 3780 3781 3782 3783
Number of inputs 5 (4 SAT inputs+1 TERR input) 9 (8 SAT inputs+1 TERR input) 13 (12 SAT inputs+1 TERR input) 17 (16 SAT inputs+1 TERR input)
Number of outputs 5 9 13 17
Frequency range SAT MHz 950 - 2150 950 - 2150 950 - 2150 950 - 2150
Frequency range TERR MHz 40 - 862 40 - 862 40 - 862 40 - 862
Gain SAT dB 10 - 15 25 25 25
Gain TERR dB 10 - 15 22 22 22
Isolation between trunk lines dB 25 25 25 25
Maximum input level SAT dBµV 103 - 98 90 90 90
Maximum input level TERR dBµV 99 - 94 85 85 85
Maximum output level SAT dBµV 113 115 115 115
Maximum output level TERR dBµV 109 107 107 107
Current consommation mA 350 700 1100 1350
DC supply voltage VDC 9 - 20 12 12 12
Operating temperature ºC -30 ... +70 -25 ... +50 -25 ... +50 -25 ... +50
Dimensions (w x d x h) cm 12.7 x 10.4 x 4.1 18.6 x 14.6 x 5.5 18.6 x 14.6 x 5.5 18.6 x 14.6 x 5.5



Manual/Datasheet
