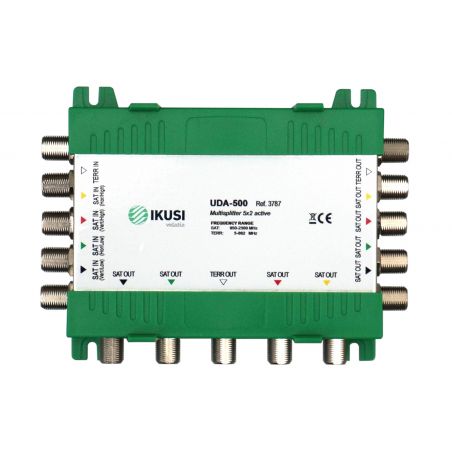

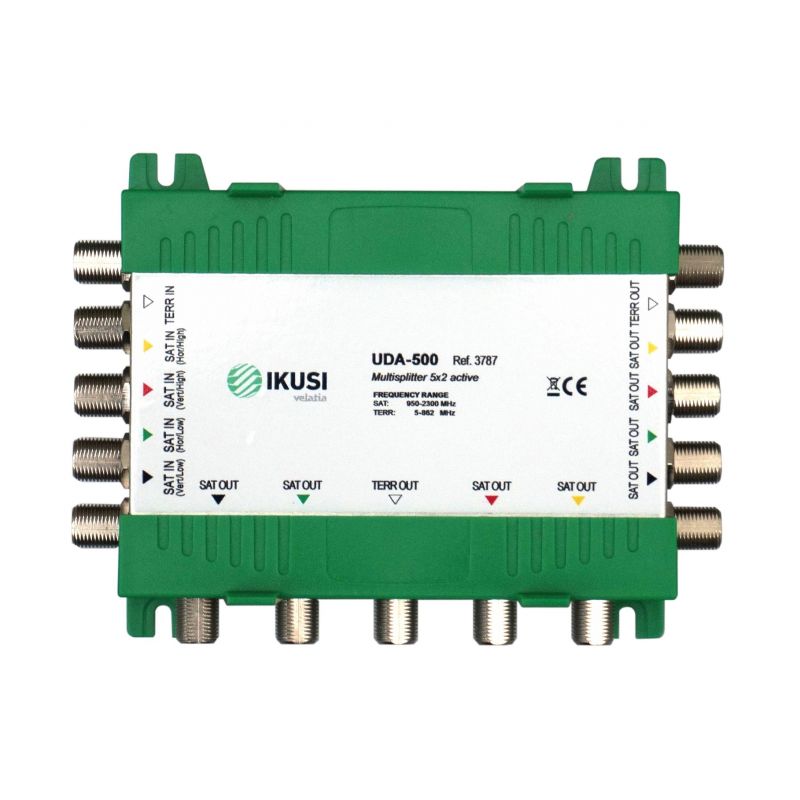

Ikusi UDA-500 Active splitter 5 inputs 10 outputs
search
  • Ikusi UDA-500 Active splitter 5 inputs 10 outputs

Ikusi UDA-500 Active splitter 5 inputs 10 outputs

Active splitter 5 inputs (4 SAT+1TERR) 10 outputs. A solution to extend the installation to a greater number of users.

€110.59
Tax included
Reference ikusi-3787
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi UDA-500 Active splitter 5 inputs 10 outputs

Ikusi UDA-500 Active splitter 5 inputs 10 outputs

€110.59

IKUSI UDA-500 . Active splitter 5 inputs (4 SAT+1TERR) 10 outputs. A solution to extend the installation to a greater number of users.

Features

  • Offered as SAT-only devices or including terrestrial section.
  • For use with QUATTRO LNB.

Technical specifications

REF. 3786 3787
Splitter type PASSIVE ACTIVE
Number of inputs 5 (4 SAT inputs+1 TERR input) 5 (4 SAT inputs+1 TERR input)
Number of outputs 10 10
Frequency range SAT MHz 950 - 2300 950 - 2300
Frequency range TERR MHz 5 - 862 48 - 862
Insertion loss SAT dB 5 -1
Insertion loss TERR dB 4 -7
Isolation between trunks dB 35 35
Isolation between outputs of each SAT splitter dB 13 13
Isolation between outputs of each TERR splitter dB 7 13
Maximum input level SAT dBµV - 94
Maximum input level TERR dBµV - 92
Maximum output level SAT (trunk or split) dBµV - 96
Maximum output level TERR (trunk or split) dBµV   100
Total current level SAT (tap) mA - 115
Operating temperature ºC -30 ... +70 -30 ... +70
Dimensions (w x d x h) cm 13.5 x 10.4 x 4.1 13.5 x 10.4 x 4.1
