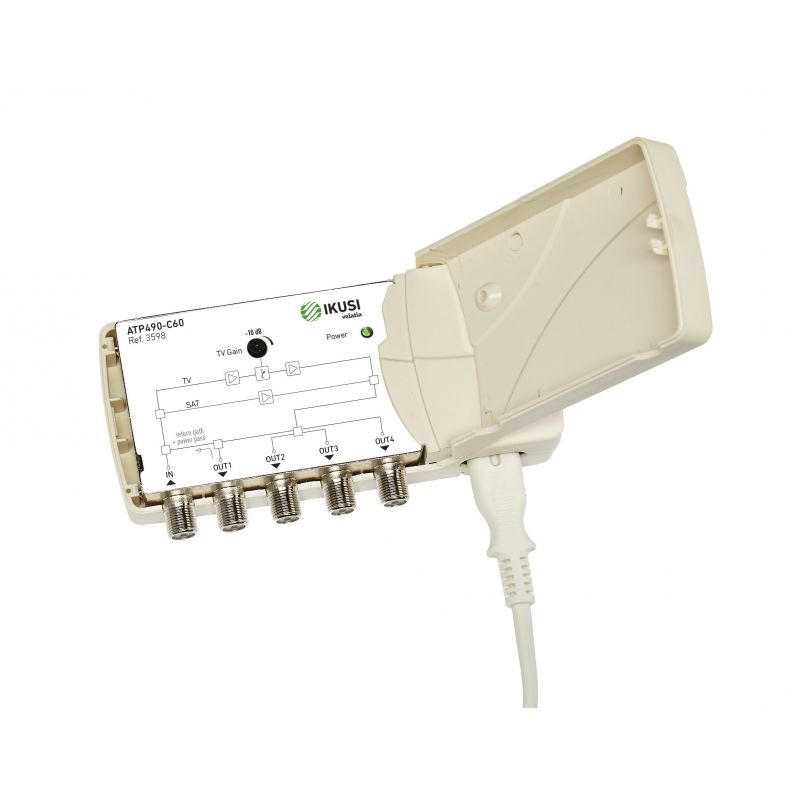

Ikusi ATP-490-C60 Amplifier 1 input 4 outputs terrestrial/satellite 47-790 MHz
Apartament amplifiers ATP490 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.
€54.45
Tax included
Reference
ikusi-3598
Brand
Ikusi
Ikusi ATP-490-C60 Amplifier 1 input 4 outputs terrestrial/satellite 47-790 MHz
€54.45
IKUSI ATP-490-C60. Apartament amplifiers ATP490 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.
Features
- Models adapted to the 1st and 2nd Digital Dividend.
- Terrestrial and satellite outputs.
- Gain adjustment potentiometers.
- Return path.
- DC transit OUT1.
Technical specifications
| Model ATP490-C60 ATP490-C48 |
Ref. | ATP490 series | ||
| 3598 | Frequencies MHz | 47 - 790 | 950 - 2400 | |
| 3599 | 47 - 694 | |||
| Input | 1 | |||
| Outputs | 4 | |||
| Gain | dB | Terr: >10 | Sat: >14 | |
| Gain adjustment | dB | Terr: >10 | - | |
| Output level | dBμV | Terr: 99 IMD3 -60dB (DIN 45004B) |
Sat: 105 IMD3 -35dB (EN 50083-3) |
|
| Return path frequency | MHz | 5 - 30 (OUT1) | ||
| Noise figure | dB | <6 | <7 | |
| Mains supply voltage | VAC | 100 - 240 | ||
| DC transit | mA | 500 (OUT1) | ||
| Consumption | W | <3 | ||
| Dimensions | mm | 135 x70 x 30 | ||
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Apartament amplifiers ATP490 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.
