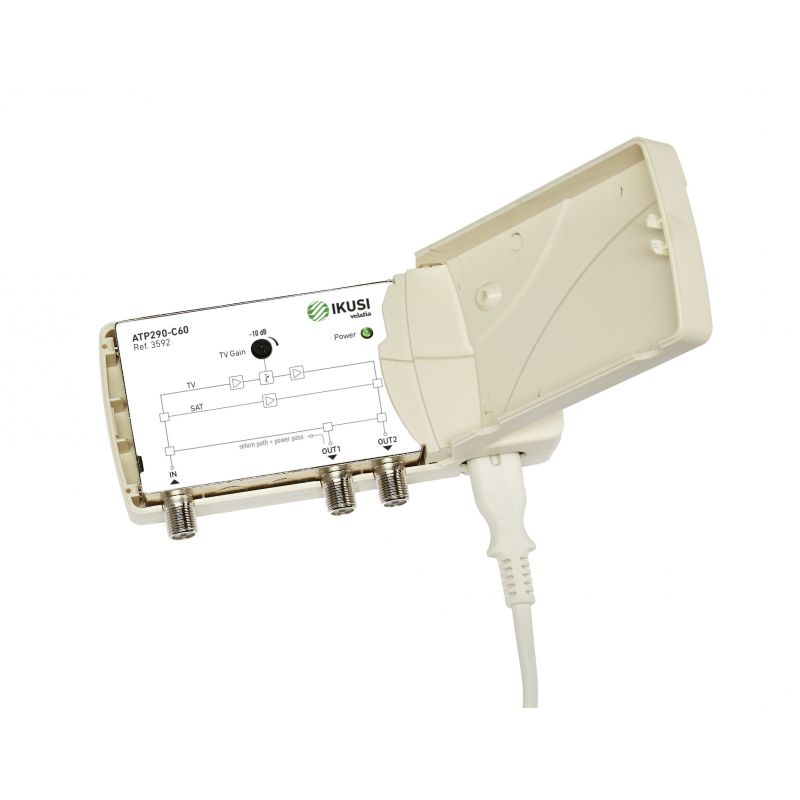

Ikusi ATP-290-C60 Amplifier 1 input 2 outputs terrestrial/satellite 47-790 MHz

Apartament amplifiers ATP290 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.

This model is replaced by the Ikusi ATP-290-C48 Amplifier 1 input 2 outputs terrestrial/satellite 47-694 MHz

€51.43

Tax included

Reference ikusi-3592

Brand Ikusi

Ikusi ATP-290-C60 Amplifier 1 input 2 outputs terrestrial/satellite 47-790 MHz

€51.43

Description
Product Details

This model is replaced by the Ikusi ATP-290-C48 Amplifier 1 input 2 outputs terrestrial/satellite 47-694 MHz

IKUSI ATP-290-C60. Apartament amplifiers ATP290 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.

Features

Models adapted to the 1st and 2nd Digital Dividend.
Terrestrial and satellite outputs.
Gain adjustment potentiometers.
Return path.
DC transit OUT1.

Technical specifications

Model ATP290-C60 ATP290-C48	Ref.	ATP290 series
	3592	Frequencies MHz	47 - 790	950 - 2400
	3593		47 - 694
Input			1
Outputs			2
Gain		dB	Terr: >14	Sat: >18
Gain adjustment		dB	Terr: >10	-
Output level		dBμV	Terr: 102 IMD3 -60dB (DIN 45004B)	Sat: 108 IMD3 -35dB (EN 50083-3)
Return path frequency		MHz	5 - 30 (OUT1)
Noise figure		dB	<5	<6
Mains supply voltage		VAC	100 - 240
DC transit		mA	500 (OUT1)
Consumption		W	<3
Dimensions		mm	135 x70 x 30

Manual/Datasheet
