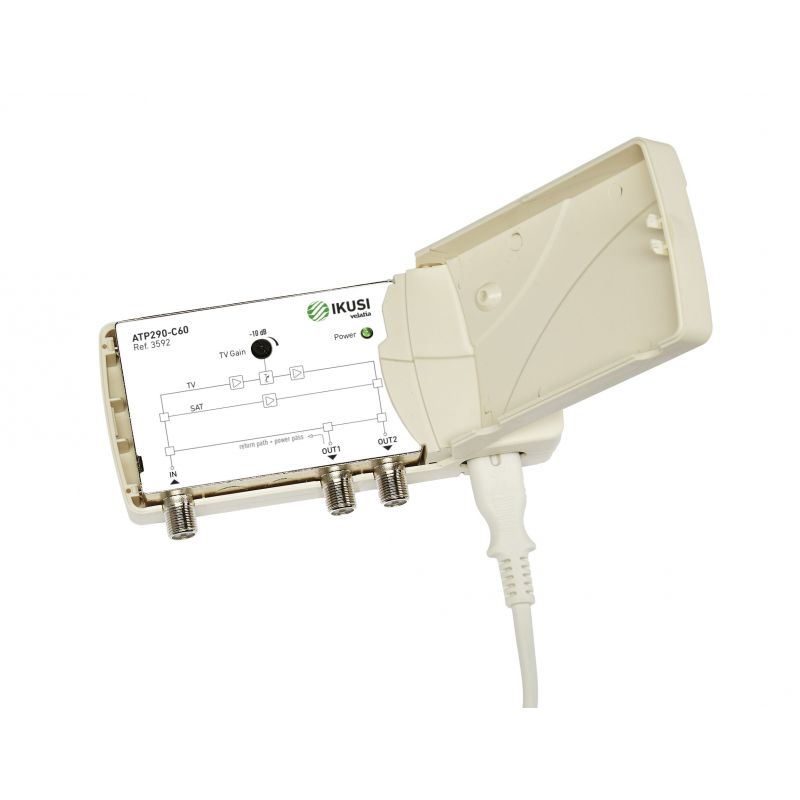

Ikusi ATP-290-C48 Amplifier 1 input 2 outputs terrestrial/satellite 47-694 MHz
Apartament amplifiers ATP290 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.
€51.43
Tax included
Reference
ikusi-3593
Brand
Ikusi
Ikusi ATP-290-C48 Amplifier 1 input 2 outputs terrestrial/satellite 47-694 MHz
€51.43
IKUSI ATP-290-C48. Apartament amplifiers ATP290 series. Models for terrestrial and satellite signals, adapted to the 1st and 2nd Digital Dividend.
Features
- Models adapted to the 1st and 2nd Digital Dividend.
- Terrestrial and satellite outputs.
- Gain adjustment potentiometers.
- Return path.
- DC transit OUT1.
Technical specifications
| Model ATP290-C60 ATP290-C48 |
Ref. | ATP290 series | ||
| 3592 | Frequencies MHz | 47 - 790 | 950 - 2400 | |
| 3593 | 47 - 694 | |||
| Input | 1 | |||
| Outputs | 2 | |||
| Gain | dB | Terr: >14 | Sat: >18 | |
| Gain adjustment | dB | Terr: >10 | - | |
| Output level | dBμV | Terr: 102 IMD3 -60dB (DIN 45004B) |
Sat: 108 IMD3 -35dB (EN 50083-3) |
|
| Return path frequency | MHz | 5 - 30 (OUT1) | ||
| Noise figure | dB | <5 | <6 | |
| Mains supply voltage | VAC | 100 - 240 | ||
| DC transit | mA | 500 (OUT1) | ||
| Consumption | W | <3 | ||
| Dimensions | mm | 135 x70 x 30 | ||
