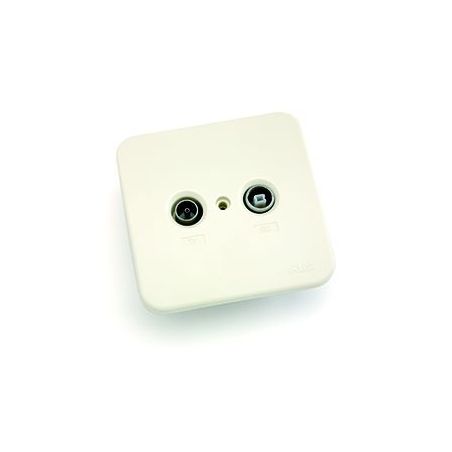

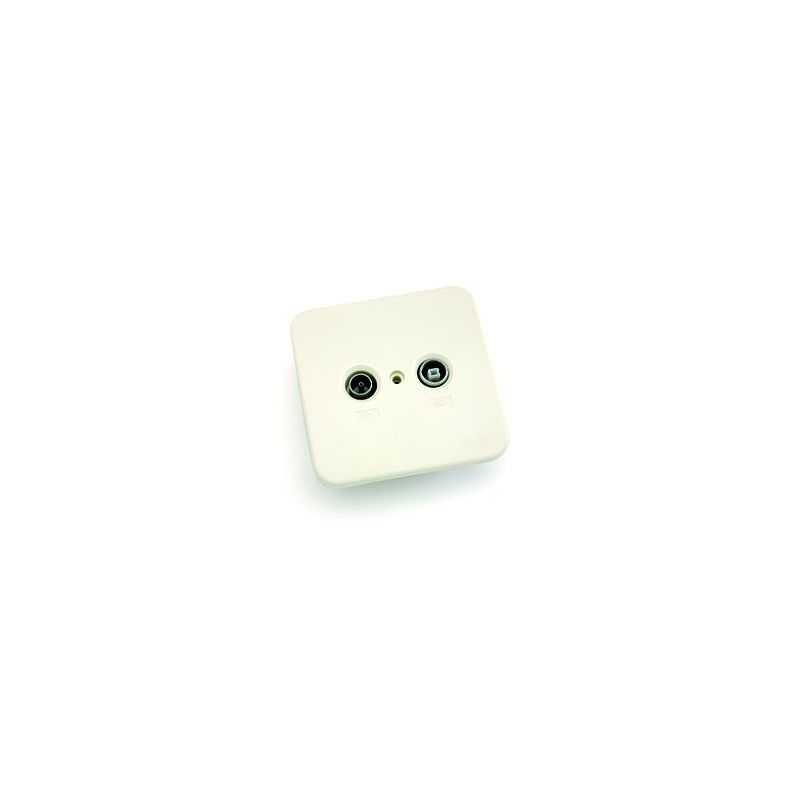

Ikusi ARTU000 End outlet / Bridged

Bridged socket base. Bridge between input output. TV-RD. With embellishing plate.

€7.14
Tax included
Reference ikusi-2735
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi ARTU000 End outlet / Bridged

Ikusi ARTU000 End outlet / Bridged

€7.14

IKUSI ARTU000. Outlets ARTU series.

Features

  • Single-cable tree distributions and for single systems or star distributions.
  • Fast and easy connection of the coaxial cable.
  • DC transit through the SAT output.

Technical specifications

REF. 2472 2736 2735
Technology type End outlet End outlet / Resistive End outlet / Bridged
Frequency range MHz TV/RD : 5 - 862
SAT : 950 - 2300
TV/RD : 5 - 862 TV/RD : 5 - 862
Transfer loss input - TV dB ≤ 1.5 ≤ 3.5
input - RD ≤ 2 ≤ 10
TV - RD isolation dB > 30 > 12.5
Coverplate   with coverplate
