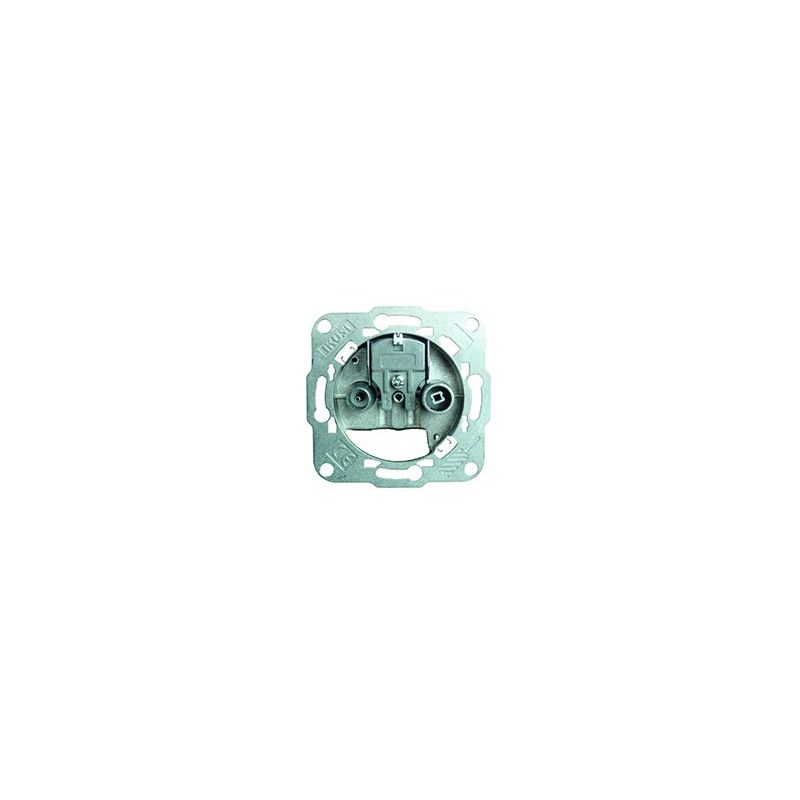

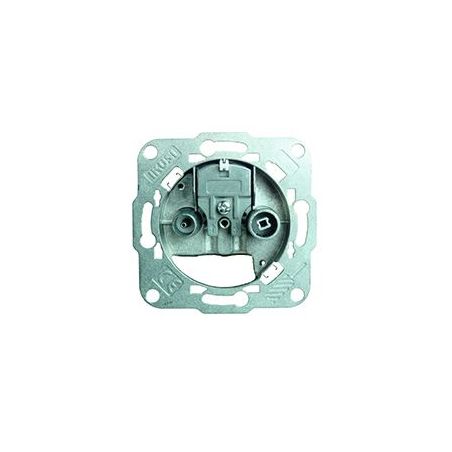

Ikusi ARTU059 End outlet
Outlets ARTU series. Final intake base. Individual. TV-RD - SAT. Without embellishing plate.
€6.05
Tax included
Reference
ikusi-2473
Brand
Ikusi
Ikusi ARTU059 End outlet
€6.05
IKUSI ARTU059. Outlets ARTU series. Final intake base. Individual. TV-RD - SAT. Without embellishing plate.
Features
- Single-cable tree distributions and for single systems or star distributions.
- Fast and easy connection of the coaxial cable.
- DC transit through the SAT output.
Technical specifications
| REF. | 2740 | 2473 | ||
| Technology type | End outlet | |||
| Frequency range | MHz | TV/RD : 5 - 862 SAT : 950 - 2300 |
||
| Transfer loss | input - TV/RD | dB | ≤ 1.5 | |
| input - SAT | ≤ 2 | |||
| TV/RD - SAT isolation | dB | > 30 | ||
| DC transit through the SAT output | Yes | No | ||
| Coverplate | without coverplate | |||
