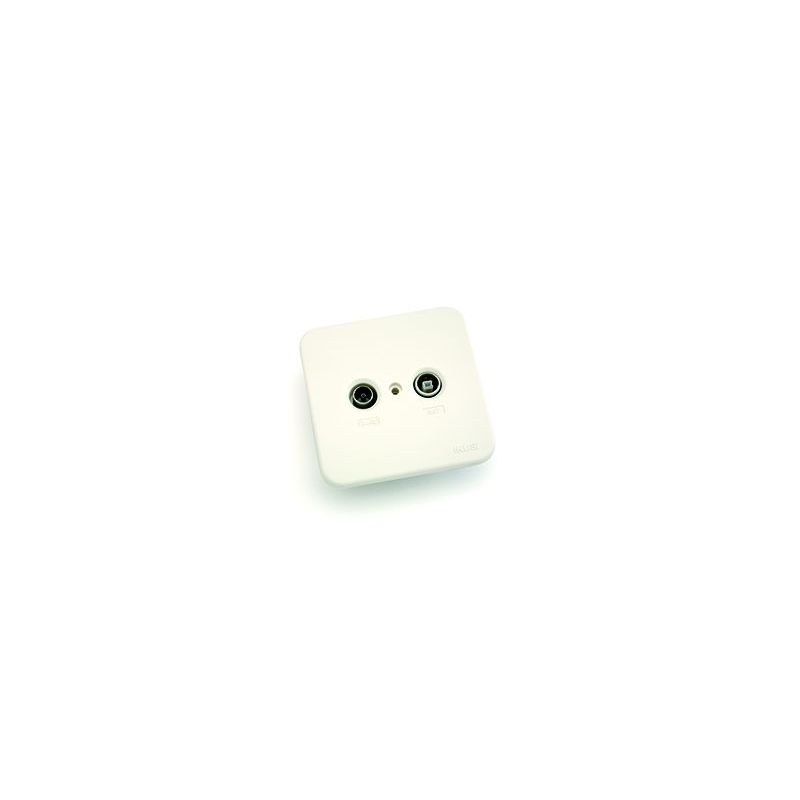

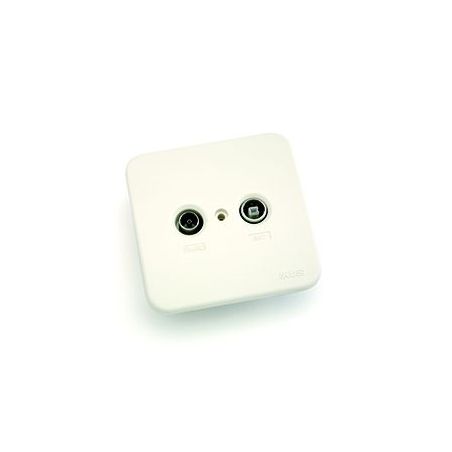

Ikusi ARTU903 Cascade intermediate tap base With Step C. TV+RD - SAT. At. 19-18dB
Outlets ARTU series. Intermediate base for cascade installations. Intermediate With Step C. TV + RD - SAT. Without coverplate. At. 19-18dB.
€10.04
Tax included
Reference
ikusi-2477
Brand
Ikusi
Ikusi ARTU903 Cascade intermediate tap base With Step C. TV+RD - SAT. At. 19-18dB
€10.04
IKUSI ARTU903. Outlets ARTU series. Intermediate base for cascade installations. Intermediate With Step C. TV + RD - SAT. Without coverplate. At. 19-18dB.
Features
- Single-cable tree distributions and for single systems or star distributions.
- Fast and easy connection of the coaxial cable.
- DC transit through the SAT output.
Technical specifications
| REF. | 2474 | 2475 | 2476 | 2477 | ||
| Technology type | End outlet | Line outlet | Line outlet | Line outlet | ||
| Frequency range | MHz | TV/RD : 5 - 862 SAT : 950 - 2300 |
TV/RD : 5 - 862 SAT : 950 - 2300 |
TV/RD : 5 - 862 SAT : 950 - 2300 |
TV/RD : 5 - 862 SAT : 950 - 2300 |
|
| Transfer loss | input - TV/RD | dB | 4,5 | 11 | 15 | 19 |
| input - SAT | 5,5 | 11 | 15 | 18 | ||
| Max through loss | 5-862 MHz | dB | — | 2 | 1,3 | 1,3 |
| 950-2300 MHz | — | 3 | 2,5 | 2,5 | ||
| TV/RD - SAT isolation | dB | > 25 | ||||
| DC transit through the SAT output | Yes | Yes | Yes | Yes | ||
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Outlets ARTU series. Intermediate base for cascade installations. Intermediate With Step C. TV + RD - SAT. Without coverplate. At. 19-18dB.
