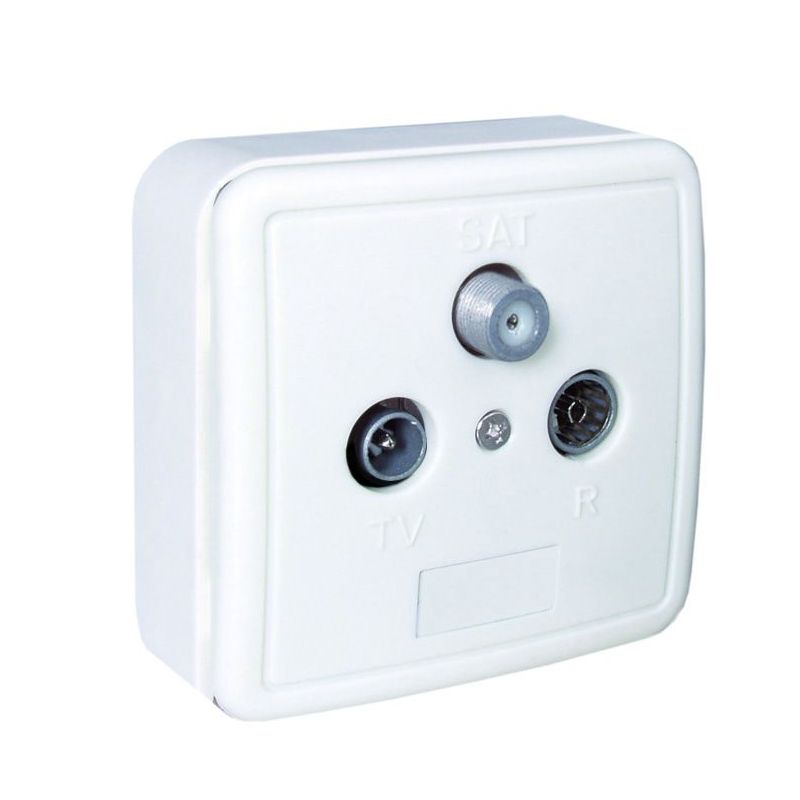

Ikusi PSE-300 End outlet base 3 connectors
Outlets ARTU series. End socket 3 connectors. Male and female connector 9.5 for Radio and TV and F for SAT input. With Step C.Sat. TV - RD - SAT. With socket. At. 2 - 2 - 3dB.
€7.50
Tax included
Reference
ikusi-5360
Brand
Ikusi
Ikusi PSE-300 End outlet base 3 connectors
€7.50
IKUSI PSE-300. Outlets ARTU series. End socket 3 connectors. Male and female connector 9.5 for Radio and TV and F for SAT input
Features
- Single-cable tree distributions and for single systems or star distributions.
- Fast and easy connection of the coaxial cable.
- DC transit through the SAT output.
Technical specifications
| REF. | 5360 | ||
| Frequency range | MHz | TV : 5 - 68 y 125 - 862 RD : 88 - 108 SAT : 950 - 2300 |
|
| Transfer loss | input - TV | dB | ≤ 2 |
| input - RD | ≤ 2 | ||
| input - SAT | ≤ 3 | ||
| TV-RD and TV-SAT isolation | dB | > 18 | |
| SAT-RD isolation | dB | > 18 | |
| DC transit through the SAT outputT | dB | Yes | |
| Coverplate + surface mounting frame | Yes | ||
Notice: Undefined index: category in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Notice: Trying to get property of non-object in /var/www/html/var/cache/prod/smarty/compile/layouts_layout_full_width_tpl/70/4e/f5/704ef5ee69ab552287a67b10a070f4285c0f2b78_2.file.product.tpl.php on line 701
Outlets ARTU series. End socket 3 connectors. Male and female connector 9.5 for Radio and TV and F for SAT input. With Step C.Sat. TV - RD - SAT. With socket. At. 2 - 2 - 3dB.
