Ikusi CCI-175 100m coil Coaxial cable (RG6 type) copper white copper

100m coil Coaxial cable (RG6 type) copper white copper. Cable. White PVC Cuckoo. (16.6 dB / 862 MHz and 27.5 dB / 2150 MHz). Inside. White PVC Soul of copper. Sheet and copper mesh

€83.49
Tax included
Reference ikusi-2522
Brand Ikusi
Quantity
Available in 24/48h

Free shipping

Ikusi CCI-175 100m coil Coaxial cable (RG6 type) copper white copper

€83.49

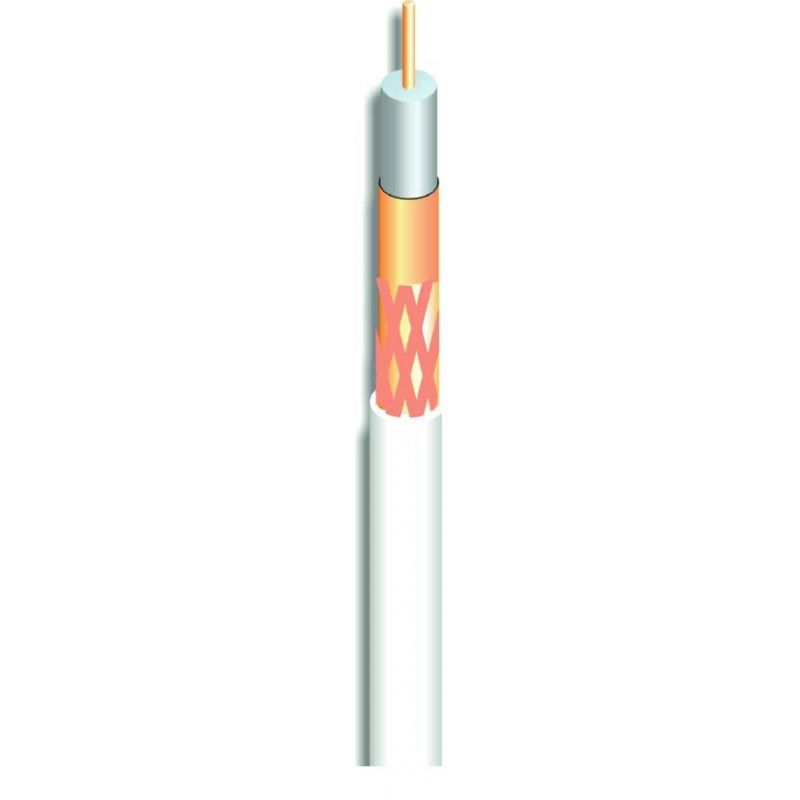

IKUSI CCI-175. Coaxial cable (RG6 type) copper white copper

Features

  • 100m coil
  • Inside
  • White PVC
  • Copper soul
  • Copper foil and mesh

Technical specifications

REF. 2522 2521 2506 2016 2493 2505 2514
Standard EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-5 EN50117-2-5
CPR Euroclass Eca Eca Eca Eca Eca Eca Fca
Screening class B B B B B B B
Inner conductor Diameter mm Cu 1.13 Cu 1.10 Cu 1.13 Cu 1.13 CCS
(Copper-plated steel) 1.13		 Cu 1.10 Cu 1.6
Dielectric Diameter mm PE 4.8 PE 5 PE 4.8 PE 4.8 PE 4.8 PE 5 PE 7.1
Outer conductor Diameter mm Cu (tape) + Cu (braid) 5.3 Al(tape) + Al (braid) 5.6 Cu (tape) + Cu (braid) 5.3 Cu (tape) + Cu(braid) 5.3 Al(tape) + AI(braid) 5.4 Al (tape) + AI(braid) 5.6 Al(tape)+Al(braid) 7.8
Outer sheath Diameter mm PVC white 6.8 PVC white 7 Polyolefin black (LSOH) *
6.8		 PVC black 6.8 PVC white 6.8 PE black 7 PE black 10
Attenuation/100m
50 MHz
200 MHz
300 MHz
470 MHz
862 MHz
1000 MHz
1750 MHz
2150 MHz		 dB 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 3.1
6.2
7.3
9.2
13.3
14.2
19.5
21.6



Manual/Datasheet
