  • Ikusi CCH-175 Coaxial cable (RG6 type) halogen free

Ikusi CCH-175 100m coil Coaxial cable (RG6 type) halogen free

100 meter coil. Coaxial cable (RG6 type) halogen free

€96.80
Tax included
Reference ikusi-2506
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi CCH-175 Coaxial cable (RG6 type) halogen free

Ikusi CCH-175 100m coil Coaxial cable (RG6 type) halogen free

€96.80

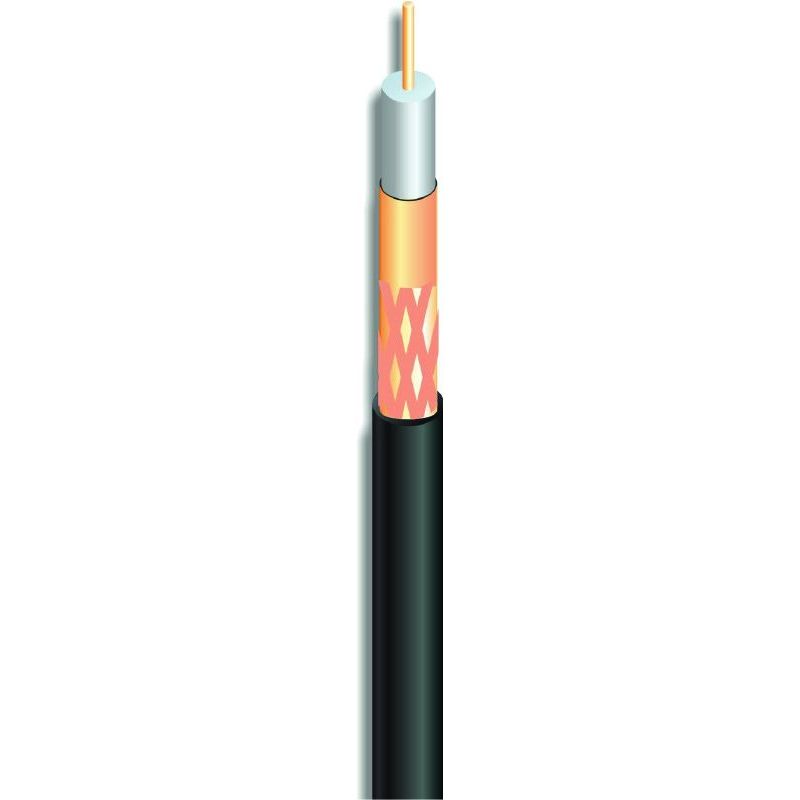

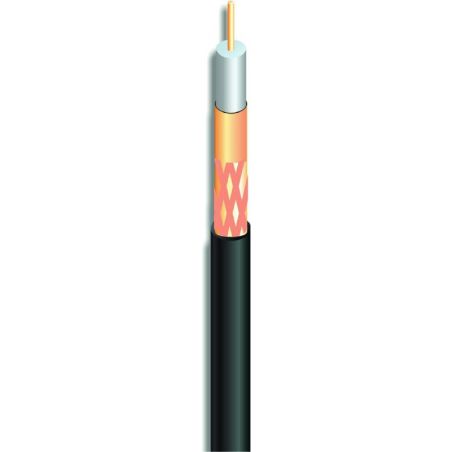

IKUSI CCH-175. Coaxial cable (RG6 type) halogen free

Features

  • 100 meter coil.
  • Coaxial cable (type RG6) halogen-free
  • Black polyolefin
  • Copper soul
  • Copper foil and mesh

Technical specifications

REF. 2522 2521 2506 2016 2493 2505 2514
Standard EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-5 EN50117-2-5
CPR Euroclass Eca Eca Eca Eca Eca Eca Fca
Screening class B B B B B B B
Inner conductor Diameter mm Cu 1.13 Cu 1.10 Cu 1.13 Cu 1.13 CCS
(Copper-plated steel) 1.13		 Cu 1.10 Cu 1.6
Dielectric Diameter mm PE 4.8 PE 5 PE 4.8 PE 4.8 PE 4.8 PE 5 PE 7.1
Outer conductor Diameter mm Cu (tape) + Cu (braid) 5.3 Al(tape) + Al (braid) 5.6 Cu (tape) + Cu (braid) 5.3 Cu (tape) + Cu(braid) 5.3 Al(tape) + AI(braid) 5.4 Al (tape) + AI(braid) 5.6 Al(tape)+Al(braid) 7.8
Outer sheath Diameter mm PVC white 6.8 PVC white 7 Polyolefin black (LSOH) *
6.8		 PVC black 6.8 PVC white 6.8 PE black 7 PE black 10
Attenuation/100m
50 MHz
200 MHz
300 MHz
470 MHz
862 MHz
1000 MHz
1750 MHz
2150 MHz		 dB 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 3.1
6.2
7.3
9.2
13.3
14.2
19.5
21.6
Supply unit reel100m reel100m reel100m reel100m reel100m reel100m reel200m
