Ikusi CCT-171 Coaxial cable (RG6 type) copper black aluminium
search
  • Ikusi CCT-171 Coaxial cable (RG6 type) copper black aluminium

Ikusi CCT-171 100m coil Coaxial cable (RG6 type) copper black aluminium

100m coil. Coaxial cable (type RG6) copper black aluminum. Exterior. Black PE Soul of copper. Aluminum sheet and mesh

€60.50
Tax included
Reference ikusi-2505
Brand Ikusi
Quantity
Available Now

Free shipping
Ikusi CCT-171 Coaxial cable (RG6 type) copper black aluminium

Ikusi CCT-171 100m coil Coaxial cable (RG6 type) copper black aluminium

€60.50

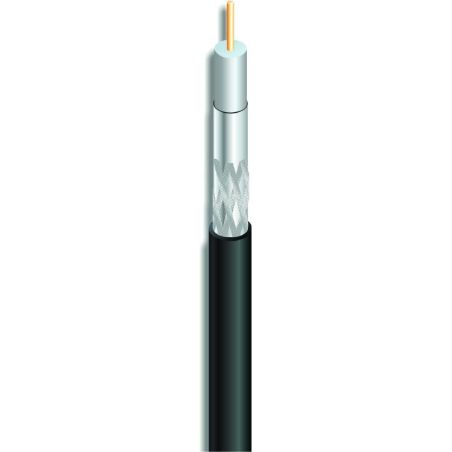

IKUSI CCT-171. Coaxial cable (RG6 type) copper black aluminium

Features

  • 100m coil
  • Exterior
  • PE Black
  • Copper soul
  • Aluminum sheet and mesh

Technical specifications

REF. 2522 2521 2506 2016 2493 2505 2514
Standard EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-4 EN50117-2-5 EN50117-2-5
CPR Euroclass Eca Eca Eca Eca Eca Eca Fca
Screening class B B B B B B B
Inner conductor Diameter mm Cu 1.13 Cu 1.10 Cu 1.13 Cu 1.13 CCS
(Copper-plated steel) 1.13		 Cu 1.10 Cu 1.6
Dielectric Diameter mm PE 4.8 PE 5 PE 4.8 PE 4.8 PE 4.8 PE 5 PE 7.1
Outer conductor Diameter mm Cu (tape) + Cu (braid) 5.3 Al(tape) + Al (braid) 5.6 Cu (tape) + Cu (braid) 5.3 Cu (tape) + Cu(braid) 5.3 Al(tape) + AI(braid) 5.4 Al (tape) + AI(braid) 5.6 Al(tape)+Al(braid) 7.8
Outer sheath Diameter mm PVC white 6.8 PVC white 7 Polyolefin black (LSOH) *
6.8		 PVC black 6.8 PVC white 6.8 PE black 7 PE black 10
Attenuation/100m
50 MHz
200 MHz
300 MHz
470 MHz
862 MHz
1000 MHz
1750 MHz
2150 MHz		 dB 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.5
8.4
10.3
12.8
17.0
19.2
25.7
28.1		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 4.6
8.5
10.5
13.0
18.0
19.5
26.0
29.8		 3.1
6.2
7.3
9.2
13.3
14.2
19.5
21.6
Supply unit reel100m reel100m reel100m reel100m reel100m reel100m reel200m
